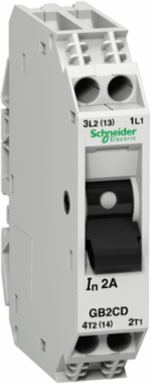

Schneider Electric GB2CD12 Circuit Breaker 1P+N 6A Thermal-Magnetic DIN Rail Mounted IP20
Schneider Electric GB2CD12 Circuit Breaker 1P+N 6A Thermal-Magnetic DIN Rail Mounted IP20
- MPN: GB2CD12
- PPN: SCH-GB2CD12
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$116.46/ EA
Description
TeSys GB circuit breaker, 2 poles (1P+N), 6A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 83A (13 In) and breaking capacity Icu 1.5kA@240V. It can also be used for protection of DC loads up to 6A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. Multi standards certified (IEC, UL, CSA), Green Premium product (RoHS/REACh).
Specifications
Environment
- Product Certifications
- UL || CSA
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-2 || CSA C22.2 No 235 || UL 1077
- Protective Treatment
- TC
- Operating Altitude
- 3000 m
Ambient Air Temperature For Operation-20-60 °C
Ambient Air Temperature For Storage-40-80 °C
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2306023
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Mechanical Robustness
- shocks 22 Gn for 20 ms IEC 60068-2-27 || vibrations 5 Gn, 5...110 Hz IEC 60068-2-6
- [Ue] Rated Operational Voltage
- 250 V AC 50/60 Hz IEC 60947-2 || 277 V AC 60 Hz CSA C22.2 No 235 || 277 V AC 60 Hz UL 1077 || 48 V DC
- Mounting Support
- plate || rail
- Net Weight
- 0.07 kg
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-2
- Power Dissipation Per Pole
- 2 W
- Mounting Mode
- by clips
- Mechanical Durability
- 8000 cycles
- Mounting Position
- horizontal || vertical
- Depth
- 67 mm
[In] Rated Current6 A
Height74 mm
9 Mm Pitches2
Connections - Terminalsconnector 1 0.75-6 mm²solid without cable end || connector 2 0.75-4 mm²solid without cable end || connector 1 0.75-4 mm²flexible with cable end || connector 2 0.75-2.5 mm²flexible with cable end
Control Typetoggle
Electrical Durability8000 cycles
Tightening Torque1.2 N.m connector
Quantity Per Setset of 6
Width15 mm
Specifications
- Network Type
- AC/DC
- Product Or Component Type
- circuit breaker
- Utilisation Category
- category A IEC 60947-2 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 75 % 110 V AC 50/60 Hz IEC 60947-2 || 75 % 230/240 V AC 50/60 Hz IEC 60947-2
- Poles Description
- 1P + N
- Device Application
- control
- Trip Unit Technology
- thermal-magnetic
Magnetic Tripping Current83-83 A
Product NameTeSys GB2
RangeTeSys
Breaking Capacity3 kA Icu 110 V AC 50/60 Hz IEC 60947-2 || 1.5 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 1.5 kA Icu 24 V DC IEC 60947-2 || 1 kA Icu 48 V DC IEC 60947-2
Network Frequency50/60 Hz IEC 60947-2
Device Short NameGB2
