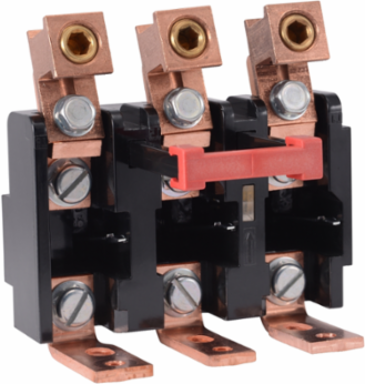

Square D 9065SDO15 Overload Relay Type S, NEMA Size 4, 3 Pole, 135A, 600VAC
Square D 9065SDO15 Overload Relay Type S, NEMA Size 4, 3 Pole, 135A, 600VAC
- MPN: 9065SDO15
- UPC: 785901850809
- PPN: SCH-9065SDO15
- UNSPSC: 39122330
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$908.15/ EA
Description
Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This replacement overload relay for a Type S NEMA size 4 three phase starters with 3 poles. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. The output contact is replaceable. Relay has a maximum voltage rating of 600 VAC. This overload relay is 6.97 inches tall, 5.31 inches wide and 5.74 inches deep.
Features
- Comes standard installed both non-reversing and reversing and combination and multispeed starters
- Simple Installation
- Field interchangeable thermal units for replacement motor installations
- Available as direct mount or separate mount
- Provides thermal protection for the most costly equipment
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase A4
- 1.2427793743333906, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.784611809308899, 0.8 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 5 kg CO2 eq., 5.069037029711683
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1312002EN
- ROHS EUR Status
- Will not be Compliant
- ROHS EUR Full Compliance Status Id
- NOT_COMPLIANT
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 1.497 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Replacement Relay
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 30 kg CO2 eq.
- Medium Desc
- Overload Relay, Type S, melting alloy, replacement overload, NEMA size 4, 3 pole, 3 phase, 135A, 600VAC
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 2.4297756375057276
Carbon Footprint Of The Manufacturing Phase A1 To A321 kg CO2 eq., 20.8190880327807
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusNot compliant
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Mounting Supportmounting plate
Phase3 phase
Product Destinationstarter
ReturnabilityYes
Thermal Overload Typemelting alloy
Ue Rated Operational Voltage2600 V AC
Stocking FlagY
Pep CodeENVPEP1312002EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Ue Rated Operational Voltage5600 V AC
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1312002EN
- EU ROHS Directive
- Not compliant
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP1312002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Carbon Footprint30.345291883640403
Environmental DisclosureENVPEP1312002EN
Nema Size4
Packaging Without Single Use PlasticNo
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
Range Of ProductReplacement Relay
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 145.8 mm
