Schneider Electric LRD056 TeSys Deca Thermal Overload Relay 0.63-1A 690VAC 1NO+1NC Class 10A
- MPN: LRD056
- PPN: SCH-LRD056
CAD
$120.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

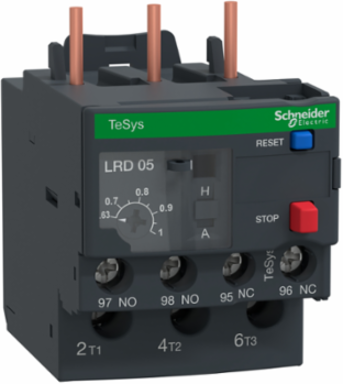

TeSys LRD thermal overload relay, 1A/690V, thermal setting range 0.63-1A, tripping class 10A, for protection of 3-phase motors less than 0.06kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Thailand |
|---|
| Depth | 70 mm |
|---|
Important Information Attributes
| Associated Fuse Rating | 4 A gG for signalling circuit, 4 A BS for signalling circuit |
|---|---|
| Mounting Support | plate, with specific accessories, rail, with specific accessories, under contactor |
| Permissible Current | 3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit |
| Temperature Compensation | -20-60 °C, -20-60 °C |
| [Ui] Rated Insulation Voltage | power circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.223194662, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.025536289, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 kg CO2 eq., 1.896335784 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - Protection relay |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1851 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Compatibility Code | LRD |
| Control Type | Red push-button stopBlue push-button reset |
| Dielectric Strength | 1.89 kV 50 Hz IEC 60947-1 |
| Network Frequency | 0...400 Hz |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | TeSys |
| Returnability | No |
| Sustainable Packaging | Yes |
| Thermal Protection Adjustment Range | 0.63-1 A |
| Total Lifecycle Carbon Footprint | 3 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP080405EN |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; France, FR |
| Recyclability Potential In % | 27 |
| Width Nominal | 45 mm |
| [Ue] Rated Operational Voltage | 690 V AC 0...400 Hz power circuit IEC 60947-4-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
| Mechanical Robustness | vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7 |
|---|---|
| Network Type | DC, AC |
| Product Name | TeSys LRD, TeSys Deca |
| Certificate Agency | IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA |
| Connections - Terminals | control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable endpower circuit lugs-ring terminals |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.365021809 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.189450077 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI0804005_V1 |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Connection Pitch | 14.5 mm |
| Device Short Name | LRD |
| Flame Retardance | V1 conforming to UL 94 |
| Phase Failure Sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Product Or Component Type | differential thermal overload relay |
| Relay Application | motor protection |
| Software Version | v6.1 |
| Thermal Overload Class | class 10A IEC 60947-4-1 |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminalspower circuit 2.3 N.m lugs-ring terminals M4 |
| Tripping Threshold | 1.14 +/- 0.06 Ir IEC 60947-4-1 |
| R Thermal Protection Adj Range | 0.63-1 A |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The functional unit of the LRD365 is to detect overload currents in order to protect the load for 20 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 28.3824 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; France, FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; France, FR |
| Height Nominal | 66 mm |
| [Ith] Conventional Free Air Thermal Current | 5 A signalling circuit |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Package Weight(Lbs) | 149.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -60-70 °C, -60-70 °C |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Circularity Profile | ENVEOLI0804005_V1 |
| Environmental Disclosure | ENVPEP080405EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP080405EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Operation | -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1 |
|---|---|
| Product Compatibility | LC1D25, LC1D32, LC1D12, LC1D38, LC1D09, LC1D18 |
| Reach Free Shvc | Yes |
| Carbon Footprint | 2.699538621 |
| Climatic Withstand | IACS E10 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | differential thermal overload relay |
|---|
ETIM
| ETIM 8 | EC000106 |
|---|
| ETIM 9 | EC000106 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
