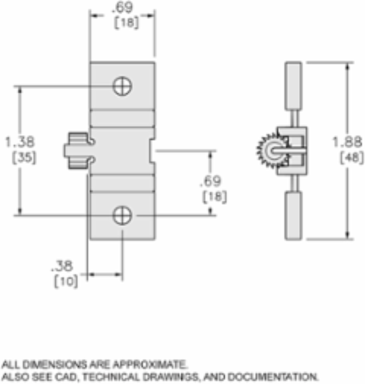

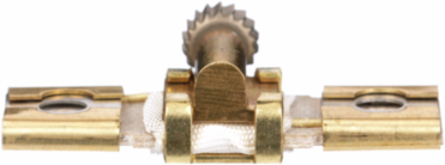

Schneider Electric B2.40 Thermal Fuse Unit, Type S & B, 30 Amps, AIC 10k Amp, Class 20

MPN: B2.40
UPC: 785901587347
PPN: SCH-B2.40
UNSPSC: 39122330

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$49.86

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This two pole fuse holder will accept class H fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are reinforced for a better connection. The fuse holder base is made of general purpose phenolic. AIC Rating in accordance with UL512 is 10,000 Amp. This fuse holder is UL listed and CSA certified.

Features

Switch electric motors with variety of overload relays
Available in NEMA Sizes 00-7
600V maximum
Thermal units available in standard, quick, and slow trip
Simple catalog number for easy and fast ordering

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	22.7 g

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Carbon Footprint Of The Distribution Phase A4	0.018845084700980598, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.007601700681815899, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	13 kg CO2 eq., 12.638798994081128
Local Publishable Date	2026-09-04
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Motor Tripping Class	20
Range Of Product	B
Software Version	v6.2.5-6
Thermal Overload Type	melting alloy
Database Version	2024-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.026931963703656962
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.1 kg CO2 eq., 0.12083608465901235
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	13 kg CO2 eq.
Data Source	extrapolated product
Customs Code	8536308000
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional Unit Unit	unit
Recyclability Potential In %	86

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	12.813013827826593
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2508030EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP2508030EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-10-08
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
