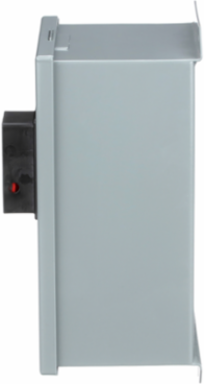

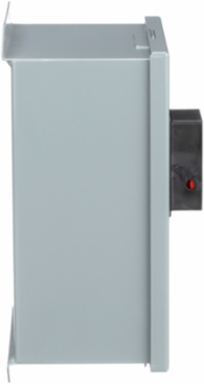

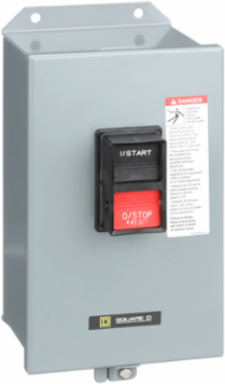

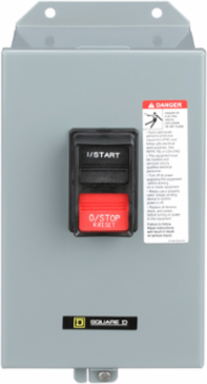

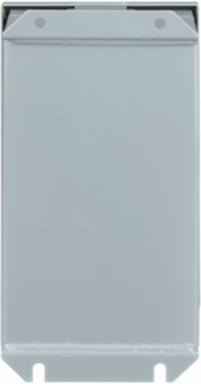

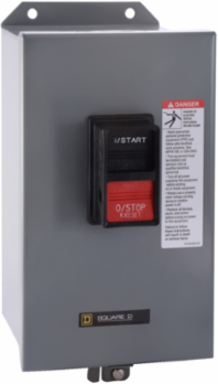

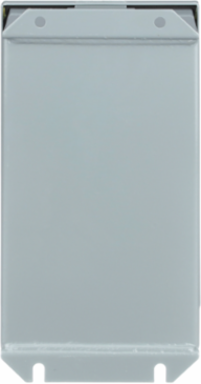

Square D 2510MBA2 Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 12

Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 12 - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/5391fc5779d56e6b3ad41c64bb029b3513acd694-medium.png

Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 12

Square D 2510MBA2 Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 12

MPN: 2510MBA2
UPC: 785901829720
PPN: SCH-2510MBA2

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$685.22/ EA

Qty:

Loading add to cart quantity...

Description

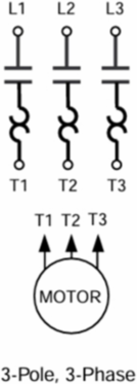

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-0 three pole starter is rated for 3 HP at 200 to 230 VAC and 5 HP at 380 to 575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. The thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.

Specifications

Environment

Product Certifications: CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV

Nema Degree Of ProtectionNEMA 12 painted sheet steel

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Mercury Free: Yes

Eu Rohs Directive: Compliant with Exemptions

Rohs Exemption InformationYes

Pvc FreeYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Motor Starter Type: non reversing

Local Signalling: no indicator

Auxiliary Contact Composition: without

Motor Power Hp: 3-3 hp 200...230 V AC, 3 phases || 5-5 hp 380...575 V AC, 3 phases

Electrical Connection: pressure wire clamp

Width: 5.78 in

[Ue] Rated Operational Voltage: 600 V AC

Thermal Overload Typemelting alloy

Height10.92 in

Number Of Thermal Units Required3

Poles Description3P

Awg GaugeAWG 14...AWG 8 copper

Depth5.76 in

Control Typepush-button

Specifications

Range Of Product: M

Product Or Component Type: Manual Starter

Nema SizeM-0
