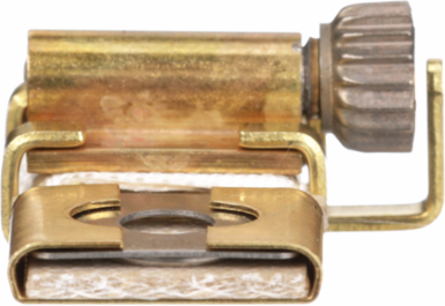

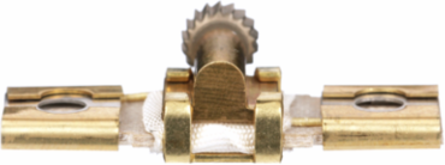

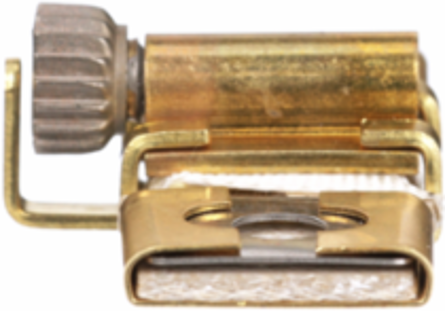

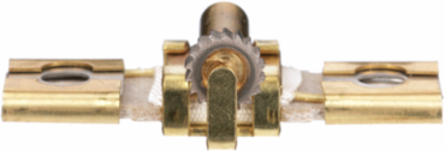

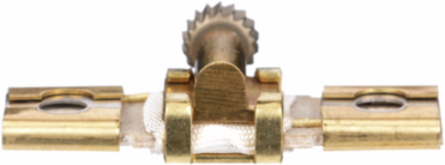

Square D B10.2 Thermal Unit Type S & B, Melting Alloy, Class 20, 18 Inch Long
- MPN: B10.2
- UPC: 785901587477
- PPN: SCH-B10.2
CAD
$49.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This Square D terminal block mounting track is designed specifically for 9080G terminal blocks. The track is pre-punched with oblong slots to make mounting the track to the panel easier. This terminal block track is 18 inches long. This track is made of galvanized steel.
Features
- Engineered explicitly for seamless drop-in integration, this authentic Square D B Series Type B thermal unit features a precise plug-in mounting design. It is fully compatible with NEMA-rated Type S and Type B manual or magnetic motor starters, allowing facility technicians to swap out worn elements instantly without modifying any existing industrial control wiring.
- Utilizing an advanced thermal-responsive melting alloy sensing method, this unit detects sustained over-current conditions before heat can degrade your motor s internal wind insulation. The mechanical eutectic alloy design provides tamper-proof, repeatable accuracy that physical wear or ambient dust won't compromise, delivering reliable protection up to a 600V maximum rating.
- Certified as a Class 20 standard trip type, this unit is engineered to endure safe high-current draws during initial motor startup while executing a definitive trip within 20 seconds under a locked-rotor scenario. It provides the exact time-delay window required to handle heavy mechanical load inertia without leaving your industrial branch-circuit conductors exposed to overheating.
Documentation & Downloads
Specifications
Additional
- Motor Tripping Class
- 20
- Length
- 18 in
- Pvc Free
- Yes
- Eu Rohs Directive
- Not applicable
Thermal Overload TypeMelting Alloy
Range Of ProductB
Reach RegulationContains Substances of Very High Concern
China Rohs RegulationOut of China RoHS scope
