Weidmuller 1429450000 THM WO 15/140 WS
- MPN: 1429450000
- PPN: WDM-1429450000
CAD
$756.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

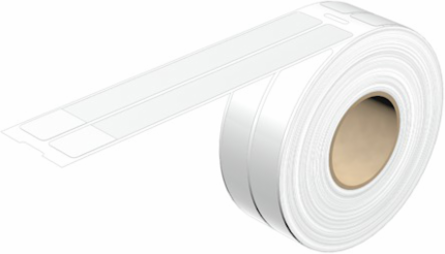

THM, Conductor and cable markers, 22.3 - 22.3 mm, 15 x 140 mm, white
Documentation & Downloads
Specifications
General Data
- Adhesive
- Polyacrylate adhesive
- Colour
- white
- Material
- Polyester film
- Operating temperature range
- -40...150 °C
- Type of printing
- neutral
- Version
- Self-adhesive
- compatible printer
- 2430920000 2448870000
Approval acc. to UL 969Yes
HalogenNo
Number per roll500
Size of labelling field70 x 15 mm
UL 94 flammability ratingV-0
Width140 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 140 mm
- Height
- 15 mm
- Depth
- 0.025 mm
- Net weight
- 211 g
Width (inches)5.512 inch
Height (inches)0.591 inch
Depth (inches)0.001 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 22.3 - 22.3 mm
- Conductor O.D., min.
- 22.3 mm
- Conductor cross-section, min.
- 323 mm²
Conductor O.D., max.22.3 mm
Conductor cross-section, max.323 mm²
HalogenNo
