Weidmuller 1774340000 THM WO 25/76 GE
- MPN: 1774340000
- PPN: WDM-1774340000
CAD
$688.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

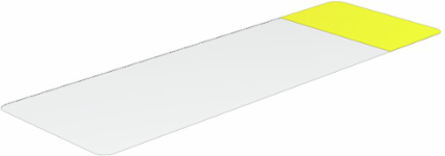

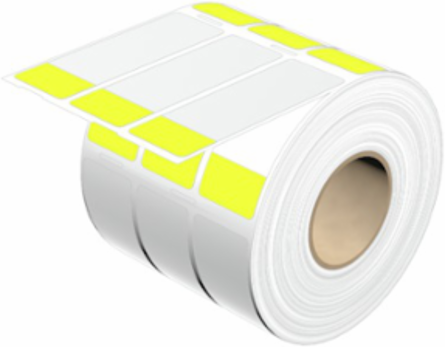

THM, Conductor and cable markers, 4.8 - 19.4 mm, 25 x 76 mm, yellow
Documentation & Downloads
Specifications
General Data
- Adhesive
- Polyacrylate adhesive
- Halogen
- No
- Material colour according to resistance code
- 4
- Operating temperature range
- -40...150 °C
- Type of printing
- neutral
- Version
- Self-adhesive
- compatible printer
- 2430920000 2448870000
Colouryellow
MaterialPolyester film
Number per roll1,800
Size of labelling field15 x 25 mm
UL 94 flammability ratingV-0
Width76 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 76 mm
- Height
- 25 mm
- Depth
- 0.025 mm
- Net weight
- 604 g
Width (inches)2.992 inch
Height (inches)0.984 inch
Depth (inches)0.001 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 4.8 - 19.4 mm
- Conductor O.D., min.
- 4.8 mm
- Conductor cross-section, min.
- 0.75 mm²
Conductor O.D., max.19.4 mm
Conductor cross-section, max.150 mm²
HalogenNo
