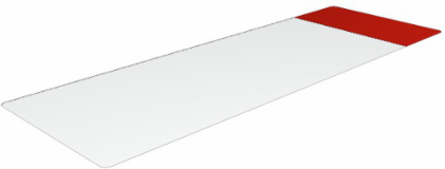

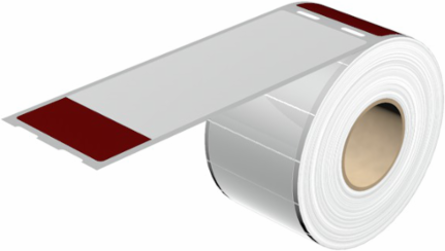

Weidmuller 1109170000 THM WO 50.8/150 RT
- MPN: 1109170000
- PPN: WDM-1109170000
CAD
$828.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
THM, Conductor and cable markers, 39.7 mm, 50.8 x 150 mm, red
Documentation & Downloads
Specifications
General Data
| Adhesive | Polyacrylate adhesive |
|---|---|
| Halogen | No |
| Material colour according to resistance code | 2 |
| Operating temperature range | -40...125 °C |
| Type of printing | neutral |
| Version | Self-adhesive |
| compatible printer | 2430920000 2448870000 |
| Colour | red |
|---|---|
| Material | Polyester film |
| Number per roll | 500 |
| Size of labelling field | 25.4 x 50.8 mm |
| UL 94 flammability rating | V-0 |
| Width | 150 mm |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 150 mm |
|---|---|
| Height | 50.8 mm |
| Depth | 0.025 mm |
| Net weight | 622 g |
| Width (inches) | 5.905 inch |
|---|---|
| Height (inches) | 2 inch |
| Depth (inches) | 0.001 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
| UNSPSC | 44-12-17-08 |
Conductor And Cable Markers
| Conductor O.D. | 39.7 mm |
|---|---|
| Conductor cross-section, max. | 500 mm² |
| Halogen | No |
| Conductor O.D., max. | 39.7 mm |
|---|---|
| Conductor cross-section, min. | 0.75 mm² |
