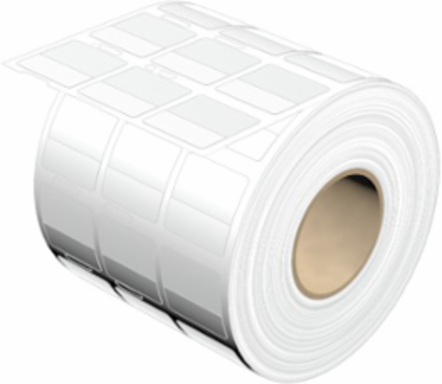

Weidmuller 1253150000 THM WO VIN 25/25 WS
- MPN: 1253150000
- PPN: WDM-1253150000
CAD
$660.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
THM, Conductor and cable markers, 3.2 - 4.8 mm, 25 x 25 mm, white
Documentation & Downloads
Specifications
General Data
- Adhesive
- Polyacrylate adhesive
- Colour
- white
- Material
- Vinyl film
- Number per roll
- 5,000
- Size of labelling field
- 10 x 25 mm
- UL 94 flammability rating
- V-0
- Width
- 25 mm
Approval acc. to UL 969No
HalogenYes
Material colour according to resistance code9
Operating temperature range-40...80 °C
Type of printingneutral
VersionSelf-adhesive
compatible printer2430920000 2448870000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 25 mm
- Height
- 25 mm
- Depth
- 0.065 mm
- Net weight
- 743 g
Width (inches)0.984 inch
Height (inches)0.984 inch
Depth (inches)0.003 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 3.2 - 4.8 mm
- Conductor O.D., min.
- 3.2 mm
- Conductor cross-section, min.
- 0.75 mm²
Conductor O.D., max.4.8 mm
Conductor cross-section, max.120 mm²
HalogenYes
