Weidmuller 1391410000 THM WO VIN 24.5/62 WS
- MPN: 1391410000
- PPN: WDM-1391410000
CAD
$698.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

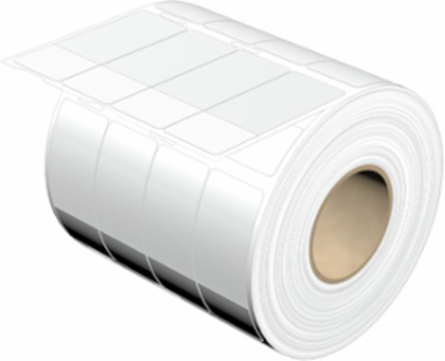

THM, Conductor and cable markers, 5.1 - 13.7 mm, 24.5 x 62 mm, white
Documentation & Downloads
Specifications
General Data
- Adhesive
- Polyacrylate adhesive
- Colour
- white
- Material
- Vinyl film
- Operating temperature range
- -40...80 °C
- Type of printing
- neutral
- Version
- Self-adhesive
- compatible printer
- 2430920000 2448870000
Approval acc. to UL 969No
HalogenYes
Number per roll2,000
Size of labelling field25 x 24.5 mm
UL 94 flammability ratingV-0
Width62 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 62 mm
- Height
- 24.5 mm
- Depth
- 0.065 mm
- Net weight
- 683 g
Width (inches)2.441 inch
Height (inches)0.965 inch
Depth (inches)0.003 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
Conductor And Cable Markers
- Conductor O.D.
- 5.1 - 13.7 mm
- Conductor O.D., min.
- 5.1 mm
- Conductor cross-section, min.
- 0.75 mm²
Conductor O.D., max.13.7 mm
Conductor cross-section, max.95 mm²
HalogenYes
