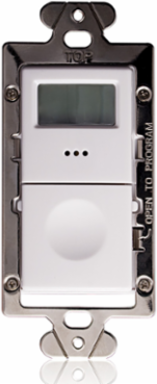

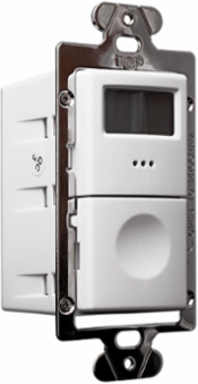

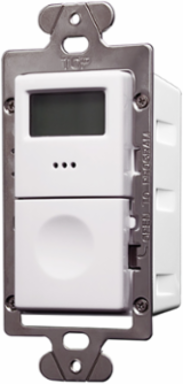

Leviton TS300-DW Digital Programmable Timer Switch, 120/277V, 3-Way, 4.2 Inch Height
Leviton TS300-DW Digital Programmable Timer Switch, 120/277V, 3-Way, 4.2 Inch Height
- MPN: TS300-DW
- UPC: 078477705926
- PPN: LEV-TS300-DW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$168.20/ EA
Description
Digital Programmable Wallbox Timer, 2 hour & 4 hour presets, Control Incandescent and fluorescent lighting and motor loads, visual and audible turnoff warning, 3Way and Multiple Way Switching, no Neutral Required, Dip Switch feature control, 120/230/277VAC, 50/60HZ. Title 24 and IECC and ASHRAE 90.1 Compliant. UL and cUL Listed. Color: White
Features
- Zero arc point switching
- Wallplate locks access to dip switches for tamper resistance
- Backlit LED
- Optional audible blink warning
- No minimum load requirement
- Adjustable time delay and sensitivity
- Walk test indicator
- Dual 120/277 VAC operation
- Meets energy code requirements for ASHRAE Standard 90.1, California Title 24 and IECC, UL and cUL listed
- The Leviton Programmable Digital Timer (TS300) provides energy saving control of indoor incandescent and fluorescent lighting as well as motor loads such as fans and circulating pumps. The TS300 features two presets to meet energy code compliance: two hour timing for California Title 24 and four hour timing for ASHRAE 90.1 requirements. Do you have a question about an occupancy sensor or vacancy sensor?
Specifications
Standards and Certifications
- Listings
- Can be used to comply with ASHRAE 90.1 and Title 24, Part 6 countdown timer switch requirements, IECC, UL and cUL listed
Mechanical Specifications
- Construction
- High-impact, injection-molded plastic
- Size
- Height 4.2" (106.68mm), Width 1.8" (45.72mm), Depth 1.65" (41.91mm)
Mounting TypeWall Switch
Switch Type3-Way, Multi-Way
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Application
- Restrooms, Storage rooms, Supply closets, Janitorial spaces, Small office
- Grade
- Commercial
- Product Line
- TS300
ColorWhite
MountingWall Switch
Sensor TypeTimer
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Relative Humidity
- 0% to 95% non-condensing
Electrical Specifications
- Frequency
- 50/60Hz
- Neutral Wire Connection
- Not Required
Load Rating120VAC: 15A Resistive - 10A Ballast - 1200W LED lamp driver - 8A Tungsten - 1/4 HP Motor - 360VA Pilot duty 277VAC: 15A Resistive - 10A Ballast
Voltage120/277 VAC
Type
- Product Type
- Programmable Timer
