Lutron

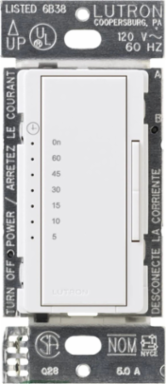

Lutron MA-T51MN-WH Maestro Countdown Timer Switch with Neutral, 600W Rating, 5-60 Min Timing

  • MPN: MA-T51MN-WH
  • UPC: 027557290845
  • PPN: LUT-MA-T51MN-WH
  • UNSPSC: 39122208

CAD

$51.30

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The Lutron Maestro Timer Switch for Fans and Lights is rated to work with up to 150W of LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV, or 3A general purpose fans. The Maestro Timer Switch requires a neutral wire making it suitable for DC and high efficiency exhaust fans. The Maestro Timer Switch is compatible with 3-way/multi-location switching applications; Lutron Accessory switches are required (MA-AS/MSC-AS). Use up to 9 Lutron Accessory switches with one Lutron Maestro Timer Switch; existing 3-way switches are not compatible. The Maestro Timer switch completes any project and matches the Maestro aesthetic for areas that don’t require a Maestro dimmer or sensor. Save energy by using the Maestro Countdown Timer in closets, attics, bathrooms, and other low-traffic areas to ensure a light or fan is never left on for a long time. Use the large tap switch to turn the timer on, or double tap for always on; use the raise/lower buttons on the side to adjust to the desired time-out option ranging from 5-60 minutes. Softly lit orange lights indicate the time remaining before turn-off. Top green LED indicator light labeled ON, has no time limit. The bottom LED blinks rapidly to indicate one minute of time remaining. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features

  • Includes (1) Maestro Countdown Timer Switch with Neutral; Gloss Finish

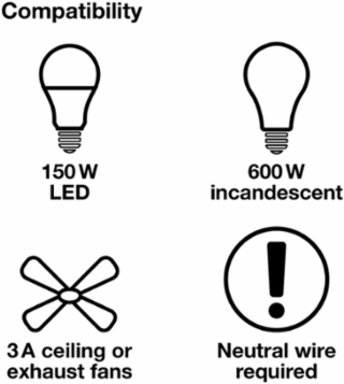

  • Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
  • Neutral required; 120V
  • 5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
  • Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
  • Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
  • Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch

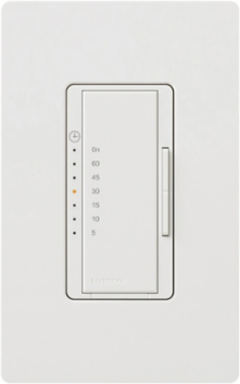

  • Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
  • Available in 10+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans

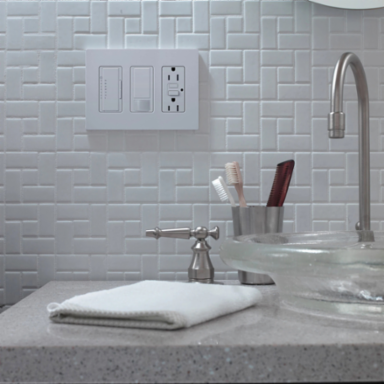

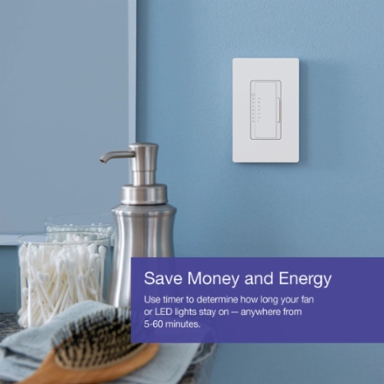

  • Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms
  • Use with lighting

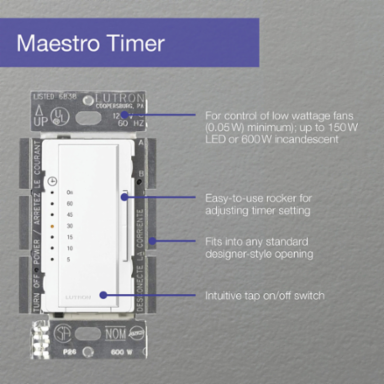

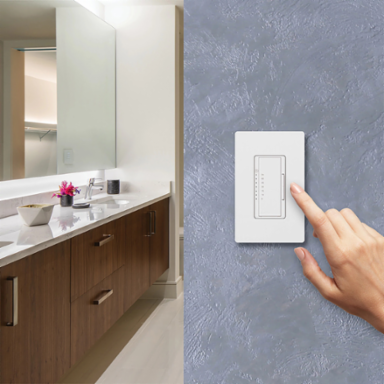

  • Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action
  • Touch rocker to adjust countdown time
  • One minute warning before lights/fan go off
  • Timer advanced programming features available.

Documentation & Downloads

Specifications

Key Specifications

Amperage Rating
5 A
Connection
Screw terminal
Contact Rating
5 A
Insulation
Plastic
Size

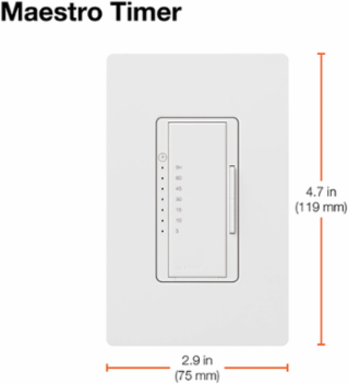

4.69 x 2.94 in
Type
Countdown timer control switch, multi-location/single-pole
Wattage
600 W
Color
White
Family Color
White
ApplicationLighting Control
Contact ConfigurationN-O
EnclosurePlastic
MountingWallbox
Timing Range5 - 60 min
Voltage Rating120 V
Aesthetic FinishGlossy
Decorative ColorWhite
FinishGloss
