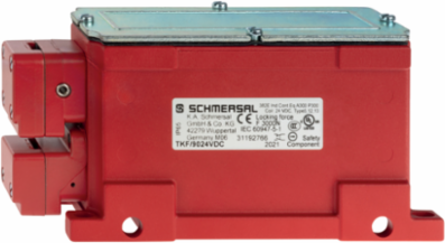

Schmersal 101010237 Solenoid Interlock with 87 mm Width, 3,000 N Holding Force, IP67
- MPN: 101010237
- PPN: SCM-101010237
CAD
$758.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Solenoid Interlock with 87 mm Width, 3,000 N Holding Force, IP67
Features
- Metal enclosure
- High holding force
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Electrical power consumption, maximum
- 10 W
- Switching frequency
- 1,000 /h
Rated control voltage24 VAC/DC
Switching principleslow action, positive break NC contact
Material of the contacts, electricalSilver
Mechanical data - Dimensions
- Length of sensor
- 50 mm
- Height of sensor
- 192 mm
Width of sensor87 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 400 V
Rated impulse withstand voltage U2.5 kV
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-158 A
Current, Utilisation category DC-135 A
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
B1,000,000 Operations
Electrical data - Magnet control
- Magnet switch-on time
- 100 %
- Test pulse interval, minimum
- 50 ms
Test pulse duration, maximum5 ms
General data - Features
- Power to unlock
- Yes
- Number of auxiliary contacts
- 2
Number of actuating directions3
Number of safety contacts2
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Gross weight
- 1,472 g
Coding level according to EN ISO 14119Low
Enclosure materialAluminium
Electrical data - Auxiliary contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-158 A
Current, Utilisation category DC-135 A
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature+0 ... +50 °C
Mechanical data - Connection technique
- Termination
- Screw terminals
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.25 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 2,000,000 Operations
- Holding force F
- 4,000 N
- Positive break force, minimum
- 20 N
Holding force F3,000 N
Latching force20 N
Actuating speed, maximum0.3 m/s
Approvals - Standards
- Certificates
- cULus | CCC
