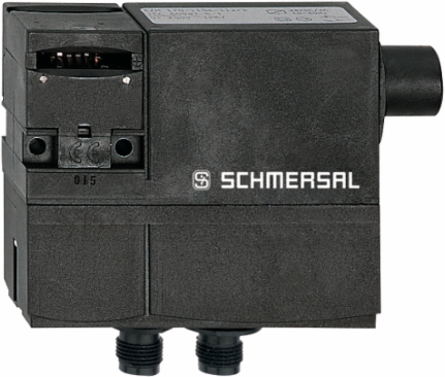

Schmersal 101141430 AZM 170 Solenoid Interlock, 24VAC/DC, IP67, 1,000 N Holding Force
- MPN: 101141430
- PPN: SCM-101141430
CAD
$745.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM 170 Solenoid Interlock, 24VAC/DC, IP67, 1,000 N Holding Force
Features
- Manual release from side
- Connector M12, 4-pole
- Thermoplastic enclosure
- Double-insulated
- Compact design
- Interlock with protection against incorrect locking.
- Long life
- High holding force
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 4 A
- Required rated short-circuit current
- 1,000 A
- Switching element
- Opener (NC)
- Switching principle
- slow action, positive break NC contact
- Material of the contacts, electrical
- Silver
Rated control voltage24 VAC/DC
Electrical power consumption, maximum12 W

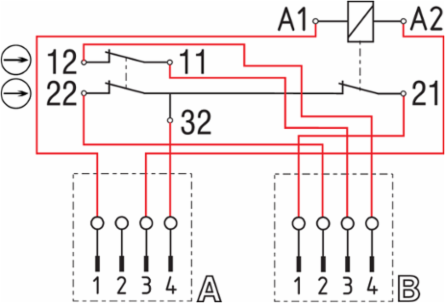

Note (Switching element)Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
Switching frequency1,000 /h
Note
- Note (Manual release)

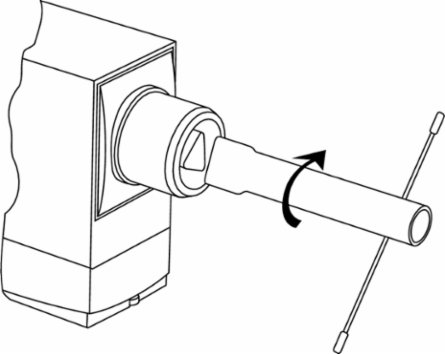

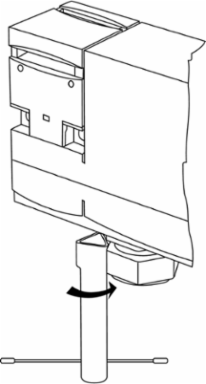

- right | bottom | For manual release using M5 triangular key, available as accessory | Additional manual release on side

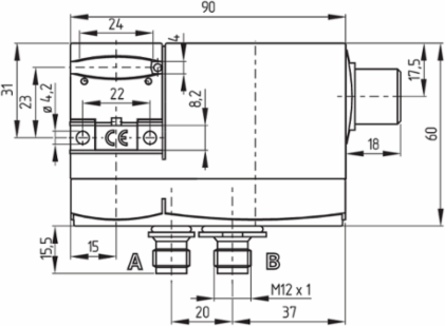

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 75.5 mm
Width of sensor108 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
- Overvoltage category
- III
Rated impulse withstand voltage U2.5 kV
Degree of pollution3
Electrical data - Safety contacts
- Current, Utilisation category AC-15
- 4 A
- Note, Utilisation category DC-13
- Connector 4-pole
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
Electrical data - Magnet control
- Magnet switch-on time
- 100 %
- Test pulse interval, minimum
- 50 ms
Test pulse duration, maximum5 ms
General data - Features
- Power to unlock
- Yes
- Number of actuating directions
- 2
Manual releaseYes
Number of safety contacts2
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Gross weight
- 285 g
Coding level according to EN ISO 14119Low
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Electrical data - Auxiliary contacts
- Note, Utilisation category DC-13
- Connector 4-pin
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- +25 °C
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding) | Connector plug M12, 4-pole, (B-coding)
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Holding force F
- 1,300 N
- Positive break travel
- 11 mm
- Positive break force, minimum
- 17 N
- Mounting
- Screws
- Tightening torque of the fastening screws for the housing cover, minimum
- 0.7 Nm
- Note
- Torx T10
Holding force F1,000 N
Latching force30 N
Positive break force per NC contact, minimum8.5 N
Actuating speed, maximum2 m/s
Type of the fixing screws2x M5
Tightening torque of the fastening screws for the housing cover, maximum1 Nm
Approvals - Standards
- Certificates
- BG | cULus | CCC
