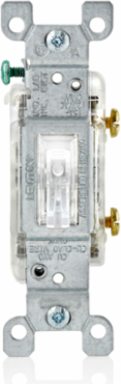

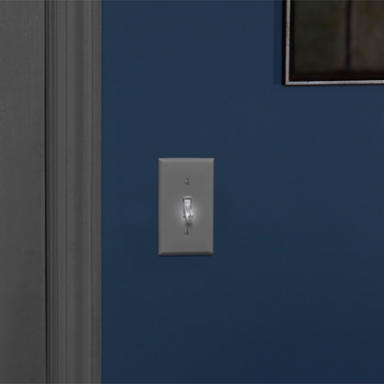

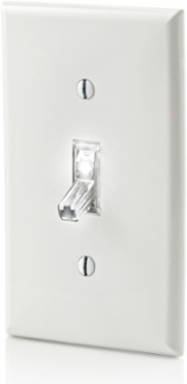

Leviton L1461-2C Toggle LED Illuminated Single-Pole Switch, 15 Amp, 120 Volt, Residential Grade
- MPN: L1461-2C
- UPC: 078477187890
- PPN: LEV-L1461-2C
CAD
$11.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120 Volt, Toggle LED Illuminated Single-Pole Switch, Residential Grade, Grounding - Clear
Features
- Designed to work with LED, CFL and incandescent bulbs, no neutral required
- Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- White LED light inside the switch provides a refreshed and modern appearance
- Replaces any standard switch
- Toggle model compatible with traditional Toggle wallplates, wallplates sold separately
- Features Quickwire push-in and Side wiring for easy installation
- Quickwire push-in terminals accept #14 AWG solid copper wire only
- Side wire terminal screws accept up to #12 AWG copper or copper clad wire
- Ideal solution for bathrooms, bedrooms, hallways, staircases, basements, laundry/utility rooms and garages.
- Limited 2-year warranty
- CAUTION: To clean use a damp cloth with mild soap. DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box
- PERFORMANCE - Designed to work with LED, CFL and incandescent loads, no neutral required
- SAFE - Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- MODERN - White LED light inside the switch provides a refreshed and modern appearance
- CONVENIENT - Replaces any standard single-pole switch; controls light(s) from one location
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- HP Rating
- 1/2 HP-120 V
- Torque Range
- 14–18 in.-lbs
- Device Type
- Toggle Switch
- Terminal Accommodation
- Side Wire #14-#12 AWG; Quickwire #14 AWG Solid copper wire only
- Grade
- Residential
- Illumination Color
- White
- Compliance
- NOM, cULus
- Country of Origin
- Mexico
- Warranty
- 2-Year Limited
Voltage120 VAC
Max. Amperage12 A
Pole1
TerminationSide Wire, Quickwire Push-In
GroundingGrounding
MaterialThermoplastic actuator and body, steel strap
LED Color Temperature6000K
RoHS CompliantFalse
ColorClear
