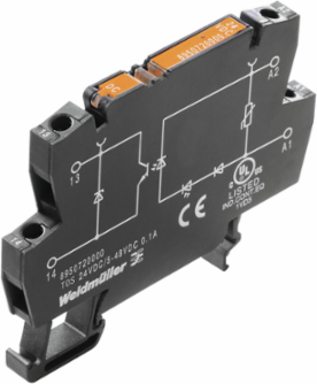

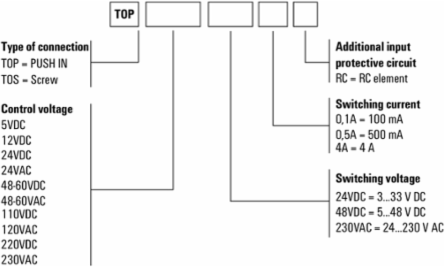

Weidmuller 8950740000 TERMOPTO Solid-State Relay 110V DC, 48V DC, 1 NO Contact, 100 mA

MPN: 8950740000
PPN: WDM-8950740000

$25.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TERMOPTO, solid-state relais, 1 NO contact (Transistor), Rated control voltage: 110 V DC ±20 % , Rated switching voltage: 5...48 V DC, Continuous current: 100 mA, Screw connection

Documentation & Downloads

Specifications

General Data

Rail	TS 35
UL 94 flammability rating	V-0

Colour	black

Probability Of Failure

MTTF	2,500 Years

Load Side

Rated switching voltage	5...48 V DC
Rated switching current	100 mA
Switch-on delay	< 170 µs
Voltage drop at max. load	< 1 V
Min. switching current	100 µA
Protective circuit, load side	Free-wheeling diode

Continuous current	100 mA
Load category	DC1
Switch-off delay	< 310 µs
Leakage current	< 10 µA
Short-circuit-proof	No
max. switching frequency (DC control voltage)	500 Hz

Approvals

Approvals	CE, CULUS, EAC
UL File Number Search	E223474

ROHS	Conform

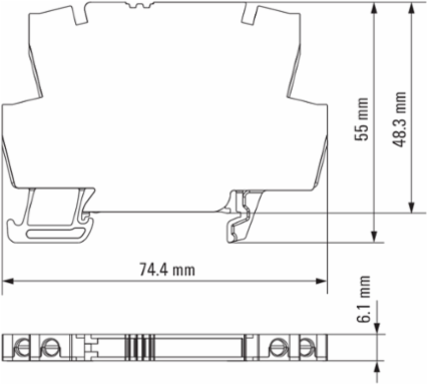

Dimensions And Weights

Width	6.1 mm
Height	74.4 mm
Depth	55 mm
Net weight	21 g

Width (inches)	0.24 inch
Height (inches)	2.929 inch
Depth (inches)	2.165 inch

Connection Data

Wire connection method	Screw connection
Tightening torque, min.	0.4 Nm
Clamping range, rated connection	2.5 mm²
Clamping range, max.	4 mm²
Wire connection cross section AWG, max.	AWG 12
Wire cross-section, solid, max.	4 mm²
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire cross-section, finely stranded, max. (AWG)	AWG 12
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	1.5 mm²

Stripping length, rated connection	9 mm
Tightening torque, max.	0.6 Nm
Clamping range, min.	0.5 mm²
Wire connection cross section AWG, min.	AWG 20
Wire cross-section, solid, min.	0.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire cross-section, finely stranded, min. (AWG)	AWG 20
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0.5 mm²
Blade size	0.6 x 3.5 mm

Contact Data

Contact type	1 NO contact (Transistor)

Control Side

Rated control voltage	110 V DC ±20 %
Power rating	< 280 mW
Status indicator	No

Nominal control current	2.6 mA DC
Cut-in / dropout voltage	88 V / 27.5 V DC
Protective circuit	Varistor, Reverse polarity protection

Classifications

ETIM 6.0	EC001504
eClass 9.0	27-37-16-04
eClass 10.0	27-37-16-04

ETIM 7.0	EC001504
eClass 9.1	27-37-16-04

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Insulation Coordination

Rated voltage	300 V
Surge voltage category	III
Dielectric strength for control side - load side	1.2 kVeff / 1 min.
Protection degree	IP20

Pollution severity	2
Clearance and creepage distances for control side - load side	> 3 mm
Impulse withstand voltage	4 kV (1.2/50 µs)

Temperatures

Humidity	5-95% relative humidity, Tu = 40°C, without condensation
Operating temperature, min.	-20 °C
Storage temperature, min.	-40 °C
Storage temperature	-40 °C...80 °C
