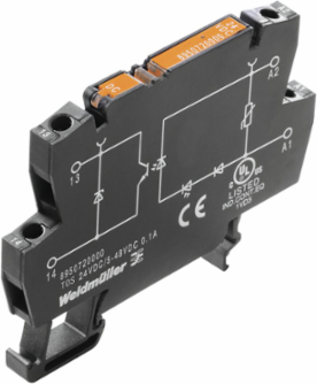

Weidmuller 8950720000 TERMOPTO Solid-State Relay, 1 NO Contact, 24V DC, 0.1A, IP20
- MPN: 8950720000
- PPN: WDM-8950720000
CAD
$26.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

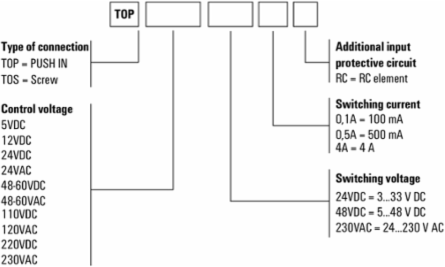

Description
TERMOPTO, solid-state relais, 1 NO contact (Transistor), Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 5...48 V DC, Continuous current: 100 mA, Screw connection
Documentation & Downloads
Specifications
General Data
| Rail | TS 35 |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | black |
|---|
Probability Of Failure
| MTTF | 2,500 Years |
|---|
Load Side
| Rated switching voltage | 5...48 V DC |
|---|---|
| Rated switching current | 100 mA |
| Switch-on delay | < 13 µs |
| Voltage drop at max. load | < 1 V |
| Min. switching current | 100 µA |
| Protective circuit, load side | Free-wheeling diode |
| Continuous current | 100 mA |
|---|---|
| Load category | DC1 |
| Switch-off delay | < 42 µs |
| Leakage current | < 10 µA |
| Short-circuit-proof | No |
| max. switching frequency (DC control voltage) | 3,000 Hz |
Approvals
| Approvals | CE, CULUS, EAC |
|---|---|
| UL File Number Search | E223474 |
| ROHS | Conform |
|---|

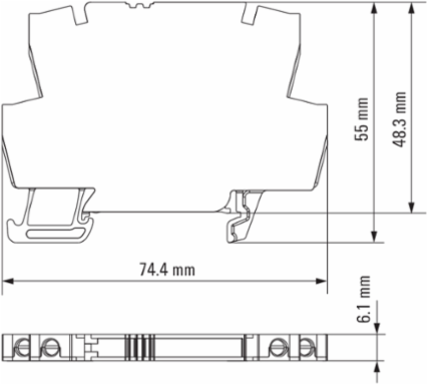

Dimensions And Weights
| Width | 6.1 mm |
|---|---|
| Height | 74.4 mm |
| Depth | 55 mm |
| Net weight | 20.7 g |
| Width (inches) | 0.24 inch |
|---|---|
| Height (inches) | 2.929 inch |
| Depth (inches) | 2.165 inch |
Connection Data
| Wire connection method | Screw connection |
|---|---|
| Tightening torque, min. | 0.4 Nm |
| Clamping range, rated connection | 2.5 mm² |
| Clamping range, max. | 4 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire cross-section, solid, max. | 4 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 12 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1.5 mm² |
| Stripping length, rated connection | 9 mm |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire cross-section, solid, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 20 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.5 mm² |
| Blade size | 0.6 x 3.5 mm |
Contact Data
| Contact type | 1 NO contact (Transistor) |
|---|
Control Side
| Rated control voltage | 24 V DC ±20 % |
|---|---|
| Power rating | ≤ 170 mW |
| Status indicator | Green LED |
| Nominal control current | 7 mA DC |
|---|---|
| Cut-in / dropout voltage | 19.2 V / 6 V DC |
| Protective circuit | Varistor, Reverse polarity protection |
Classifications
| ETIM 6.0 | EC001504 |
|---|---|
| eClass 9.0 | 27-37-16-04 |
| eClass 10.0 | 27-37-16-04 |
| ETIM 7.0 | EC001504 |
|---|---|
| eClass 9.1 | 27-37-16-04 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 300 V |
|---|---|
| Surge voltage category | III |
| Dielectric strength for control side - load side | 1.2 kVeff / 1 min. |
| Protection degree | IP20 |
| Pollution severity | 2 |
|---|---|
| Clearance and creepage distances for control side - load side | > 3 mm |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
Temperatures
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
|---|---|
| Operating temperature, min. | -20 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -20 °C...60 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E223474 |
|---|
Further Details Of Approvals / Standards
| Standards | DIN EN 50178, IEC 62314, UL508 |
|---|
| Certificate no. (cULus) | E223474 |
|---|
