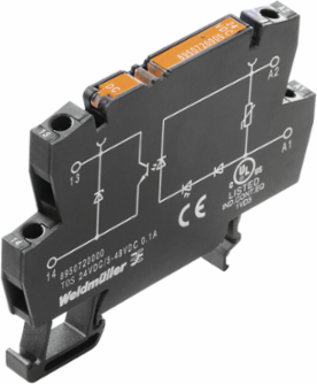

Weidmuller 8951030000 TOS Solid-State Relay 48-60VAC/48VDC, 500mA, 1 NO Contact, 6mm Width
- MPN: 8951030000
- PPN: WDM-8951030000
CAD
$58.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

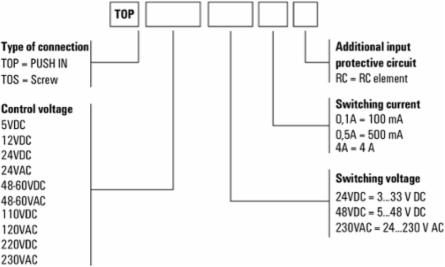

Description
TERMOPTO, solid-state relais, 1 NO contact (Transistor), Rated control voltage: 48…60 V AC ±20 % , Rated switching voltage: 5...48 V DC, Continuous current: 500 mA, Screw connection
Documentation & Downloads
Specifications
General Data
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Colourblack
Probability Of Failure
- MTTF
- 2,500 Years
Load Side
- Rated switching voltage
- 5...48 V DC
- Rated switching current
- 500 mA
- Switch-on delay
- < 12 ms
- Voltage drop at max. load
- < 1 V
- Short-circuit-proof
- No
- max. switching frequency (AC control voltage)
- 10 Hz
Continuous current500 mA
Load categoryDC1
Switch-off delay< 14 ms
Leakage current< 10 µA

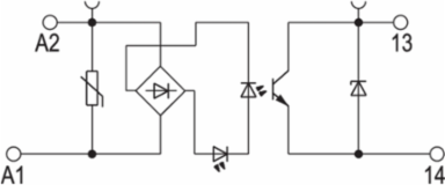

Protective circuit, load sideFree-wheeling diode
Approvals
- Approvals
- CE, CULUS, EAC
- UL File Number Search
- E223474
ROHSConform

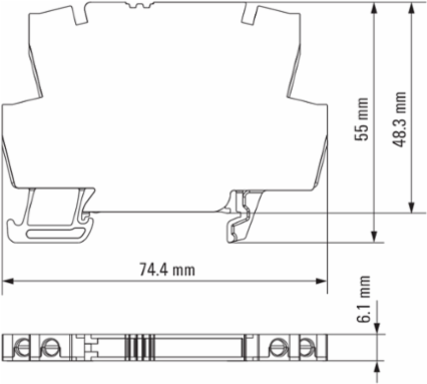

Dimensions And Weights
- Width
- 6.1 mm
- Height
- 74.4 mm
- Depth
- 55 mm
- Net weight
- 20.9 g
Width (inches)0.24 inch
Height (inches)2.929 inch
Depth (inches)2.165 inch
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, min.
- 0.4 Nm
- Clamping range, rated connection
- 2.5 mm²
- Clamping range, max.
- 4 mm²
- Wire connection cross section AWG, max.
- AWG 12
- Wire cross-section, solid, max.
- 4 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 12
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
Stripping length, rated connection9 mm
Tightening torque, max.0.6 Nm
Clamping range, min.0.5 mm²
Wire connection cross section AWG, min.AWG 20
Wire cross-section, solid, min.0.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire cross-section, finely stranded, min. (AWG)AWG 20
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.5 mm²
Blade size0.6 x 3.5 mm
Contact Data
- Contact type
- 1 NO contact (Transistor)
Control Side
- Rated control voltage
- 48…60 V AC ±20 %
- Power rating
- ≤ 0.2 VA
- Status indicator
- Green LED
Nominal control current4.3 mA AC
Cut-in / dropout voltage38.4 V / 19.2 V AC
Protective circuitVaristor, Rectifier
Classifications
- ETIM 6.0
- EC001504
- eClass 9.0
- 27-37-16-04
- eClass 10.0
- 27-37-16-04
ETIM 7.0EC001504
eClass 9.127-37-16-04
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Surge voltage category
- III
- Dielectric strength for control side - load side
- 1.2 kVeff / 1 min.
- Protection degree
- IP20
Pollution severity2
Clearance and creepage distances for control side - load side> 3 mm
Impulse withstand voltage4 kV (1.2/50 µs)
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.60 °C
Storage temperature, max.80 °C
Operating temperature-20 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E223474
Further Details Of Approvals / Standards
- Standards
- DIN EN 50178, IEC 62314, UL508
Certificate no. (cULus)E223474
