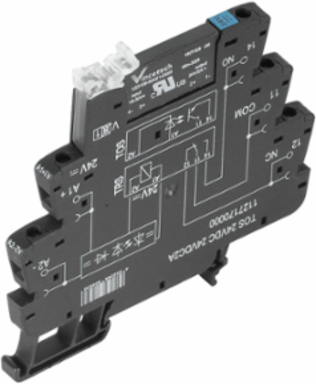

Weidmuller 1127390000 TERMSERIES Solid-State Relay 5V DC Control, 24-240V AC, 1A, 3.528 Inch Height, IP20
- MPN: 1127390000
- PPN: WDM-1127390000
CAD
$53.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

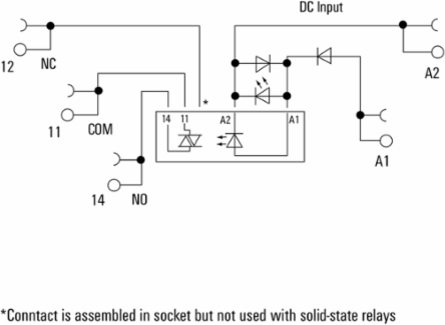

Description
TERMSERIES, solid-state relais, 1 NO contact (Triac (zero-cross switch)), Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Screw connection
Documentation & Downloads
Specifications
General Data
| Rail | TS 35 |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | black |
|---|
Probability Of Failure
| MTTF | 1,120 Years |
|---|
Load Side
| Rated switching voltage | 24...240 V AC |
|---|---|
| Rated switching current | 1 A |
| Switch-on delay | < 12 ms |
| Voltage drop at max. load | ≤ 1.6 V |
| Min. switching current | 20 mA |
| Protective circuit, load side | RC element |
| max. switching frequency (DC control voltage) | 3 Hz |
| Continuous current | 1 A |
|---|---|
| Inrush current | 15 A / 10 ms |
| Switch-off delay | < 12 ms |
| Leakage current | < 1.5 mA |
| Short-circuit-proof | No |
| Output voltage frequency range | 50 / 60 Hz |
Approvals
| Approvals | CE, CULUS, DNV GL, EAC |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 6.4 mm |
|---|---|
| Height | 89.6 mm |
| Depth | 87.8 mm |
| Net weight | 33.3 g |
| Width (inches) | 0.252 inch |
|---|---|
| Height (inches) | 3.528 inch |
| Depth (inches) | 3.457 inch |
Connection Data
| Wire connection method | Screw connection |
|---|---|
| Tightening torque, max. | 0.4 Nm |
| Clamping range, min. | 0.14 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire connection cross-section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.25 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Blade size | size PH0 |
| Stripping length, rated connection | 8 mm |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1 mm² |
| Twin wire-end ferrules, max. | 1 mm² |
| Gauge to IEC 60947-1 | A1, B1 |
Rated Data Ul
| Ambient temperature (operational), max. | 60 °C |
|---|---|
| Connection cross-section AWG, max. | AWG 14 |
| Tightening torque, max. | 0.4 Nm |
| Connection cross-section AWG, min. | AWG 26 |
|---|---|
| Type of conductor | rigid copper conductor, flexible copper conductor |
| Pollution severity level | 2 |
Contact Data
| Contact type | 1 NO contact (Triac (zero-cross switch)) |
|---|
Control Side
| Rated control voltage | 5 V DC ±20 % |
|---|---|
| Power rating | 75 mW |
| Status indicator | Green LED |
| Coil voltage of the replacement relay deviating from the rated control voltage | No |
| Nominal control current | 15 mA DC (±20 %) |
|---|---|
| Cut-in / dropout voltage | 3.4 V / 1.5 V DC |
| Protective circuit | Free-wheeling diode, Reverse polarity protection |
| Coil voltage of the replacement relay | 5 V DC |
Classifications
| ETIM 6.0 | EC001504 |
|---|---|
| eClass 9.0 | 27-37-16-04 |
| eClass 10.0 | 27-37-16-04 |
| ETIM 7.0 | EC001504 |
|---|---|
| eClass 9.1 | 27-37-16-04 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 300 V |
|---|---|
| Surge voltage category | III |
| Dielectric strength for control side - load side | 2.5 kVeff |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Pollution severity | 2 |
|---|---|
| Clearance and creepage distances for control side - load side | ≥ 5.5 mm |
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Protection degree | IP20 |
Temperatures
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
|---|---|
| Operating temperature, min. | -20 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...70 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -20 °C...60 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E141197 |
|---|
Further Details Of Approvals / Standards
| Standards | DIN EN 50178 |
|---|
| Certificate no. (cULus) | E141197 |
|---|
