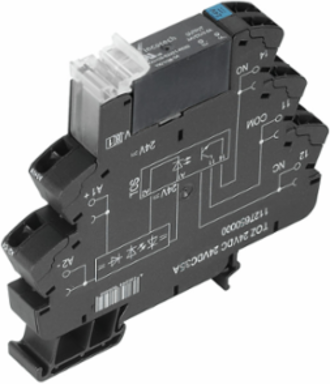

Weidmuller 1990980000 Solid-State Relay 24V DC, 5A, 3-33V DC Switching Voltage
- MPN: 1990980000
- PPN: WDM-1990980000
CAD
$67.27
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

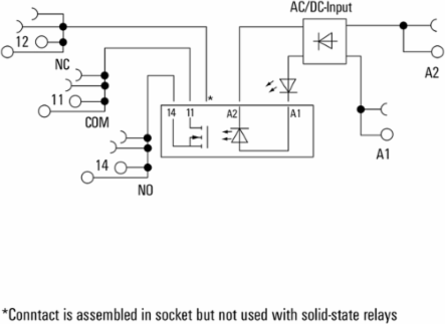

TERMSERIES, solid-state relais, 1 NO contact (MOS-FET), Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 5 A, Tension-clamp connection
Documentation & Downloads
Specifications
General Data
- Rail
- TS 35
Colourblack
Probability Of Failure
- MTTF
- 1,061 Years
Load Side
- Rated switching voltage
- 3...33 V DC
- Rated switching current
- 5 A
- Switch-off delay
- < 600 µs
- Leakage current
- < 10 µA
- Short-circuit-proof
- No
- max. switching frequency (DC control voltage)
- 300 Hz
Continuous current5 A
Switch-on delay< 55 µs
Voltage drop at max. load≤ 0.3 V
Min. switching current1 mA
Protective circuit, load sideFree-wheeling diode
Approvals
- Approvals
- CE, CULUS, DNV GL, EAC
- UL File Number Search
- E141197
ROHSConform

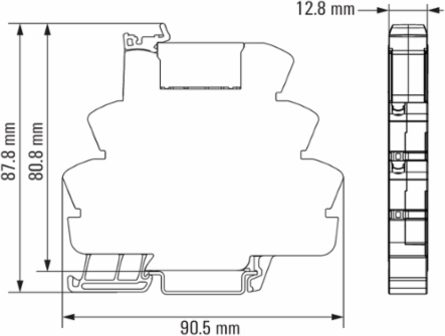

Dimensions And Weights
- Width
- 12.8 mm
- Height
- 90.5 mm
- Depth
- 87.8 mm
- Net weight
- 54.6 g
Width (inches)0.504 inch
Height (inches)3.563 inch
Depth (inches)3.457 inch
Connection Data
- Wire connection method
- Tension-clamp connection
- Clamping range, rated connection
- 1.5 mm²
- Clamping range, max.
- 2.5 mm²
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 14
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
- Twin wire-end ferrules, max.
- 1 mm²
- Gauge to IEC 60947-1
- A1, B1
Stripping length, rated connection8 mm
Clamping range, min.0.14 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.14 mm²
Wire connection cross-section, finely stranded, min.0.14 mm²
Wire cross-section, finely stranded, min. (AWG)AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.14 mm²
Twin wire-end ferrules, min.0.5 mm²
Blade size0.6 x 3.5 mm
Rated Data Ul
- Ambient temperature (operational), max.
- 55 °C
- Connection cross-section AWG, min.
- AWG 26
- Type of conductor
- rigid copper conductor, flexible copper conductor
Output current derating (ohmic)5 A @ 50 °C, 4 A @ 55 °C
Connection cross-section AWG, max.AWG 14
Pollution severity level2
Contact Data
- Contact type
- 1 NO contact (MOS-FET)
Control Side
- Rated control voltage
- 24 V DC ±20 %
- Power rating
- 260 mW
- Cut-in / dropout current
- 0.9 mA / 0.3 mA DC
- Protective circuit
- Free-wheeling diode, Reverse polarity protection
- Coil voltage of the replacement relay
- 24 V DC
Nominal control current10.8 mA DC (±10 %)
Cut-in / dropout voltage4.5 V / 3 V DC
Status indicatorGreen LED
Coil voltage of the replacement relay deviating from the rated control voltageNo
Classifications
- ETIM 6.0
- EC001504
- eClass 9.0
- 27-37-16-04
- eClass 10.0
- 27-37-16-04
ETIM 7.0EC001504
eClass 9.127-37-16-04
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Surge voltage category
- III
- Dielectric strength for control side - load side
- 2.5 kVeff
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
Pollution severity2
Clearance and creepage distances for control side - load side≥ 5.5 mm
Dielectric strength to mounting rail4 kVeff / 1 Min.
Protection degreeIP20
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
Operating temperature, max.60 °C
Storage temperature, max.70 °C
Operating temperature-20 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
Further Details Of Approvals / Standards
- Standards
- DIN EN 50178
Certificate no. (cULus)E141197
