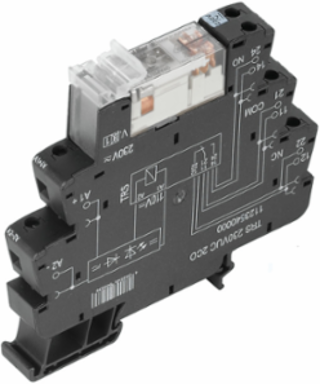

Weidmuller 1123580000 TERMSERIES Relay Module, 2 CO Contacts, 24-230V UC, 8A, 12.8mm Wide
- MPN: 1123580000
- PPN: WDM-1123580000
CAD
$51.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TERMSERIES, Relay module, Number of contacts: 2 CO contact AgNi, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 8 A, Screw connection
Documentation & Downloads
Specifications
General Data
- Rail
- TS 35
- Mechanical switch position indicator
- No
- UL 94 flammability rating
- V-0
Test buttonNo
Colourblack
Approvals
- Approvals
- CE, CULUS, DNV GL, EAC
- UL File Number Search
- E141197
ROHSConform

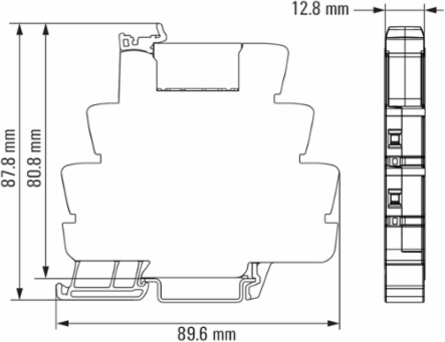

Dimensions And Weights
- Width
- 12.8 mm
- Height
- 89.6 mm
- Depth
- 87.8 mm
- Net weight
- 61 g
Width (inches)0.504 inch
Height (inches)3.528 inch
Depth (inches)3.457 inch
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, max.
- 0.4 Nm
- Clamping range, min.
- 0.14 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Wire cross-section, solid, min.
- 0.14 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.25 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.25 mm²
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Blade size
- size PH0
Stripping length, rated connection8 mm
Clamping range, rated connection1.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Wire cross-section, solid, max.2.5 mm²
Wire connection cross section, finely stranded, max.2.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.2.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1 mm²
Twin wire-end ferrules, max.1 mm²
Gauge to IEC 60947-1A1, B1
Rated Data Ul
- Ambient temperature (operational), max.
- 40 °C
- Connection cross-section AWG, max.
- AWG 14
- Tightening torque, max.
- 0.4 Nm
Connection cross-section AWG, min.AWG 26
Type of conductorrigid copper conductor, flexible copper conductor
Pollution severity level2

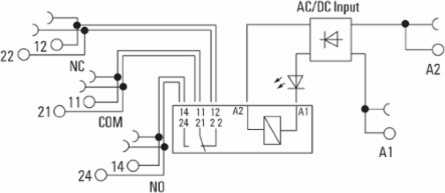

Contact Data
- Contact type
- 2 CO contact (AgNi)

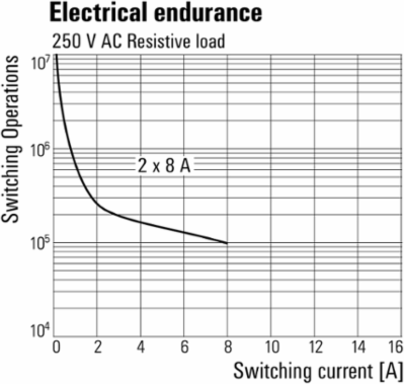

Mechanical service life30 x 106 switching cycles
Input
- Rated control voltage
- 24...230 V UC ± 10 %
- Rated current DC
- 44.5 mA DC @ 24 V DC, 3.5 mA DC @ 230 V DC
- Pull-in/drop-out voltage, typ.
- 18.5 V / 7 V AC 17.5 V / 5 V DC
- Status indicator
- Green LED
- Coil voltage of the replacement relay deviating from the rated control voltage
- Yes
Rated current AC31.0 mA AC @ 24 V AC, 7.3 mA AC @ 230 V AC
Power rating1.1 W @ 24 V DC, 750 mVA @ 24 V AC, 805 mW @ 230 V DC, 1.68 VA @ 230 V AC
Pull-in/drop-out current, typ.42 mA / 14 mA AC 38 mA / 10 mA DC
Protective circuitRectifier
Coil voltage of the replacement relay24 V DC
Classifications
- ETIM 6.0
- EC001437
- eClass 9.0
- 27-37-16-01
- eClass 10.0
- 27-37-16-01
ETIM 7.0EC001437
eClass 9.127-37-16-01
Output
- Rated switching voltage
- 250 V AC
- Max. switching voltage, DC
- 250 V
- Inrush current
- 15 A / 4 s

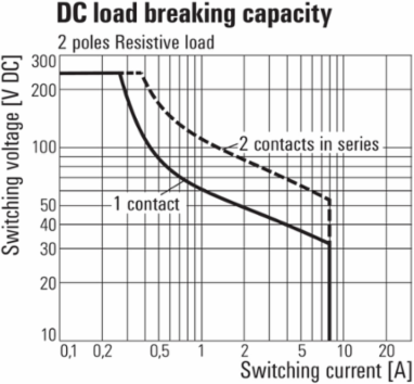

- DC switching capacity (resistive), max.
- 192 W @ 24 V
- Switch-off delay
- < 100 ms
- Max. switching frequency at rated load
- 0.1 Hz
Max. switching voltage, AC250 V
Continuous current8 A
AC switching capacity (resistive), max.2000 VA
Switch-on delay< 40 ms
Min. switching power1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Pollution severity
- 2
- Dielectric strength, Input/Output
- 1.2 kVeff / 5 s
- Dielectric strength of neighbouring contacts
- 2.5 kVeff
- Dielectric strength to mounting rail
- 4 kVeff / 1 Min.
Surge voltage categoryIII
Protection degreeIP20
Creepage and clearance distance input – output≥ 5.5 mm
Dielectric strength of open contact1 kVeff / 1 min
Impulse withstand voltage6 kV (1.2/50 µs)
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
Further Details Of Approvals / Standards
- Standards
- EN 50178, EN 55011, EN 61000-6-1, 2, 4
- Certificate no. (cULus)
- E141197
Certificate No. (DNVGL)TAA00001E5
