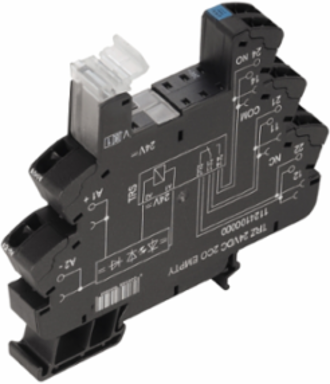

Weidmuller 1124190000 Relay Base with 2 CO Contact, 24-230V UC, 10A Continuous Current, 3.457 Inch Depth
- MPN: 1124190000
- PPN: WDM-1124190000
CAD
$42.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TERMSERIES, Relay bases, Number of contacts: 2 CO contact, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 10 A, Tension-clamp connection
Documentation & Downloads
Specifications
General Data
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Colourblack
Approvals
- Approvals
- CE, cURus, EAC
- UL File Number Search
- E223759
ROHSConform

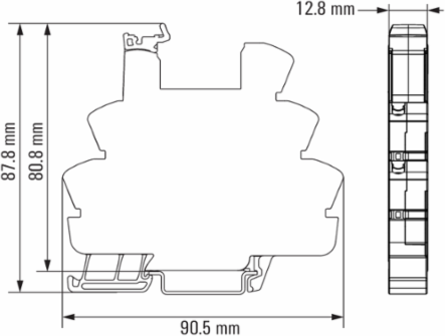

Dimensions And Weights
- Width
- 12.8 mm
- Height
- 90.5 mm
- Depth
- 87.8 mm
- Net weight
- 47.4 g
Width (inches)0.504 inch
Height (inches)3.563 inch
Depth (inches)3.457 inch
Connection Data
- Wire connection method
- Tension-clamp connection
- Clamping range, rated connection
- 1.5 mm²
- Clamping range, max.
- 2.5 mm²
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 14
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
- Twin wire-end ferrules, max.
- 1 mm²
- Pitch in mm (P)
- 5 mm
Stripping length, rated connection8 mm
Clamping range, min.0.14 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.14 mm²
Wire connection cross-section, finely stranded, min.0.14 mm²
Wire cross-section, finely stranded, min. (AWG)AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.14 mm²
Twin wire-end ferrules, min.0.5 mm²
Blade size0.6 x 3.5 mm
Gauge to IEC 60947-1A1, B1
Rated Data Ul
- Certificate No. (cURus)
- E223759
- Connection cross-section AWG, min.
- AWG 26
- Type of conductor
- rigid copper conductor, flexible copper conductor
Ambient temperature (operational), max.40 °C
Connection cross-section AWG, max.AWG 14
Pollution severity level2
Contact Data
- Contact type
- 2 CO contact

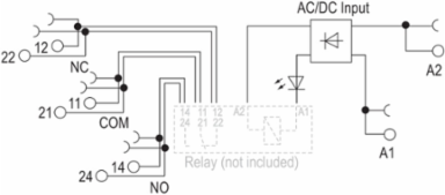

Input
- Rated control voltage
- 24...230 V UC ± 10 %
- Protective circuit
- Rectifier
- Coil voltage of the replacement relay
- 24 V DC
Status indicatorGreen LED
Coil voltage of the replacement relay deviating from the rated control voltageYes
Classifications
- ETIM 6.0
- EC001456
- eClass 9.0
- 27-37-16-03
- eClass 10.0
- 27-37-16-03
ETIM 7.0EC001456
eClass 9.127-37-16-03
Output
- Rated switching voltage
- 250 V AC
Continuous current10 A
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Pollution severity
- 2
- Dielectric strength, Input/Output
- 1.2 kVeff / 5 s
- Dielectric strength of neighbouring contacts
- 2.5 kVeff
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
Surge voltage categoryIII
Protection degreeIP20
Creepage and clearance distance input – output≥ 5.5 mm
Dielectric strength to mounting rail4 kVeff / 1 Min.
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -40 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Further Details Of Approvals / Standards
- Standards
- DIN EN 50178
Certificate No. (cURus)E223759
