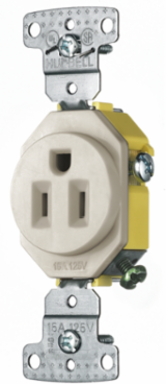

Bryant RR151LA Residential Grade Straight Blade Receptacle 15A 125V 2-Pole Light Almond
Bryant RR151LA Residential Grade Straight Blade Receptacle 15A 125V 2-Pole Light Almond
- MPN: RR151LA
- UPC: 883778119224
- PPN: HBL-RR151LA
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$11.69/ EA
Description
tradeSELECT® Straight Blade Receptacle, Residential Grade, Single, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R
Features
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws
- Tough thermoplastic ultrasonically welded cover and base
- Self Grounding
Specifications
Specifications
- Country of Origin
- CN
- Width
- 3.500 in
- Performance
- Environmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
- Application
- Residential Receptacles
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Voltage Rating
- 125 VAC
- Wire Size
- #14 AWG to #12 AWG
- Connectivity
- Side Wired
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire Grounding
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- RR151AL
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.1 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.300 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Each - Width3.500 in
Amperage Rating15 A
ColorLight Almond
NEMA Rating5-15R
Number of Wires3-Wire Grounding
Special FeaturesSelf Grounding
Wattage1875
Voltage Rating Description125 VAC
Display SizeStandard Sized Product
Number Of Poles2-Pole
Description - InvoiceRESI SGL RCPT, 15A 125V, SELF GRND, LA
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE2.300x8.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778119224
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
