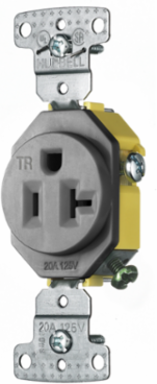

Bryant RR201GYTR Tamper Resistant Single Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Gray

MPN: RR201GYTR
UPC: 883778301971
PPN: HBL-RR201GYTR
UNSPSC: 39121406

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$8.00/ EA

Qty:

Loading add to cart quantity...

Description

TradeSelect, Straight Blade, Single Receptacle, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray

Features

Smooth indented face appearance
Multiple-drive Slot/Phillips/Robertson head screws
Tough thermoplastic ultrasonically welded cover and base
Tamper Resistant- Self Grounding

Specifications

Country of Origin: China

Width: 1.400 in

Amperage Rating: 20 A

Color: Gray

NEMA Rating: 5-20R

Number of Wires: 3-Wire Grounding

Special Features: Tamper Resistant- Self Grounding

Wattage: 2500

Voltage Rating Description: 125 VAC

Connectivity: Side Wired

Nema Rating: 5-20R

Number Of Wires: 3-Wire Grounding

Freight Class Code: 06168002

Image Actual Or Representative: A

Material - Mounting Hardware: Screw Mounting

Material: Thermoplastic

BOX SIZE: 2.200x7.900x4.400 (in)

Carton - Number of Sub Packs: 10

Carton - SCC-14 Next Lower Level Sub Pack: 883778301971

Case Weight: 10.000 lb.

Lowest Level UOM: Each

Current / Amperage Rating20 A

PerformanceEnvironmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only

ApplicationResidential Receptacles

Environmental ConditionsIndoor Dry Unless Protected By Additional Means

Number of Poles2-Pole

PhaseSingle Phase

Voltage Rating125 VAC

Wire Size#12 AWG to #10 AWG

General Literature Asset 1 Display TextGeneral Literature - Tamper-Resistant and Weather Resistant Receptacles

Display SizeStandard Sized Product

Number Of Poles2-Pole

Description - InvoiceRESI SGL RCPT, 20A 125V, TR, GY

Harmonization Code8536698000

MSDS FlagNo

Current Rating20 A

Base Unit of MeasureEA

Carton - Gross Weight per Pack1.2 lb.

Carton - Pack DescriptionCarton

Carton - Total Units10

Each - Pack DescriptionEach

Certifications

EU RoHS Indicator: Yes
