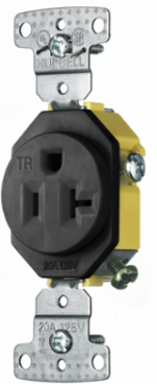

Bryant RR201BKTR Straight Blade Tamper Resistant Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Black
- MPN: RR201BKTR
- UPC: 883778301957
- PPN: HBL-RR201BKTR
- UNSPSC: 39121406
CAD
$8.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TradeSelect, Straight Blade, Single Receptacle, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Black
Features
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws
- Tough thermoplastic ultrasonically welded cover and base
- Tamper Resistant- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.500 in
- Standards - RoHS Compliance Status
- CM
- Application
- Residential Receptacles
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Voltage Rating
- 125 VAC
- Wire Size
- #12 AWG to #10 AWG
- General Literature Asset 1 Display Text
- General Literature - Tamper-Resistant and Weather Resistant Receptacles
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Description - Invoice
- RESI SGL RCPT, 20A 125V, TR, BK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.2 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.700 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
PerformanceEnvironmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
Amperage Rating20 A
ColorBlack
NEMA Rating5-20R
Number of Wires3-Wire Grounding
Special FeaturesTamper Resistant- Self Grounding
Wattage2500
Voltage Rating Description125 VAC
ConnectivitySide Wired
Nema Rating5-20R
Number Of Wires3-Wire Grounding
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE2.300x8.100x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778301957
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
