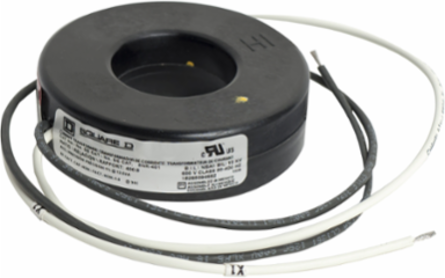

Square D 5NR401 General Purpose Current Transformer 400/5, NEMA 1, Ø 1.56 Inch
Square D 5NR401 General Purpose Current Transformer 400/5, NEMA 1, Ø 1.56 Inch
- MPN: 5NR401
- UPC: 785901099307
- PPN: SCH-5NR401
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$109.94/ EA
Description
Square D 600 Volt rated current and voltage transformers are field-proven in well over a million installations where accuracy and longer, more dependable operation are essential. In most cases, the information contained in this catalog should be sufficient for the proper selection of the instrument transformer best suited for your application. Instrument transformers are ideally suited in the following applications such as indoor, switchgear assemblies, motor controllers. They can also be used with metering, relays, current sensing, over circuit breaker bushings and over power transformer bushings. This General Purpose Current Transformer has a transformer rating of 400/5 with a NEMA 1 rating, and is 1 phase. This product is UL recognized with an 18 months, warranty. These transformers complys to UL & cUL standards.
Specifications
Specifications
- Product Certifications
- UL recognized
- Electrical Connection
- flying leads 24 in, AWG 16
- Rated Power In Va
- 12.5 VA
- Network Number Of Phases
- 1 phase
Nema Degree Of ProtectionNEMA 1

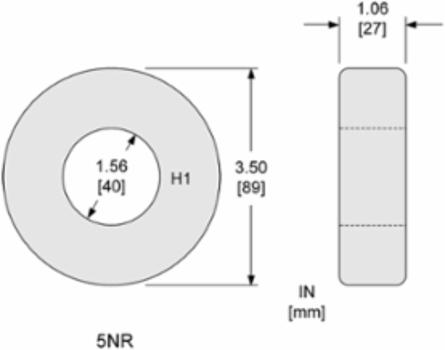

Opening SizeØ 1.56 in
Product Or Component TypeGeneral Purpose Current Transformer
Transformer Ratio400/5
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectiveCompliant
Halogen Content PerformanceHalogen free plastic parts product
Contractual warranty
- Warranty
- 18 months
