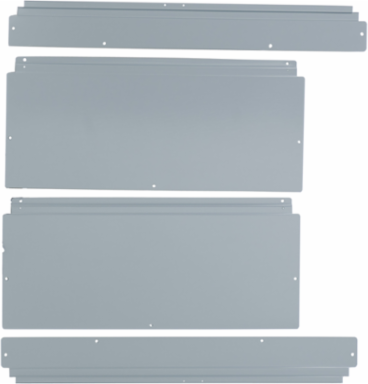

Square D HCM64TS I-Line Panelboard Trim Front, 32-1/4 Inch W x 64 Inch H, 4 pcs
- MPN: HCM64TS
- UPC: 785901089094
- PPN: SCH-HCM64TS
CAD
$558.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Crafted by Schneider Electric, this I-Line Panelboard Trim Front is an essential accessory for enhancing the functionality of your power distribution systems. Measuring 32-1/4 inches wide and 64 inches high, it provides a robust and reliable solution for protecting panelboard edges while also offering a clean, professional appearance. Sold in a pack of four, this trim front is designed to seamlessly integrate with I-Line panelboards, ensuring a secure and efficient installation. Ideal for various industrial and commercial applications, it reflects Schneider Electric's commitment to quality and innovation in electrical solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Important Information Attributes
- Certificate Agency
- CE, cULus
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 17 kg CO2 eq., 16.682059293462014
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 62 kg CO2 eq., 61.59571309852701
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- trim
- Range Of Product
- I-Line
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 82 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Accommodate and protect control, command and protection devices via a panelboard cover/trim with door (2184.4 mm x 241.3 mm x 1073.15 mm) , providing protection levels IP = IP30 and IK = IK07,or a reference service life of 20 years, in commercial/industrial applications
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 97
- Width Nominal
- 32.25 in
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]3.6048312310393116, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01590976983433896, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1847
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Product Destinationpanelboard HCM 32 in 64 in 8.25 in
Quantity Per Set4
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2509036EN
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5][A5]
Energy Model - End Of Life [C1-c4][C1 - C4]
Height Nominal64 in
Halogen-free StatusHalogen free product
Package Weight(Lbs)12.474 kg
Take-backNo
Customs Code8538908160
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Carbon Footprint
- 81.89851339286267
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2509036EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeYes
Environmental DisclosureENVPEP2509036EN
Halogen Content PerformanceHalogen free product
Packaging Without Single Use PlasticNo
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- trim
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
