On-Q CO1166 Trio Combo Module with Cat6 Data CO1166
- MPN: CO1166
- UPC: 804428433132
- PPN: P-S-CO1166
CAD
$112.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

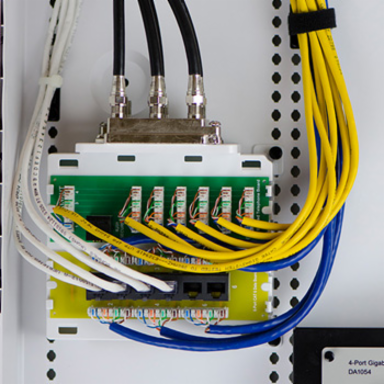

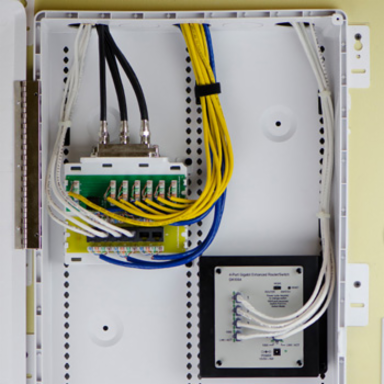

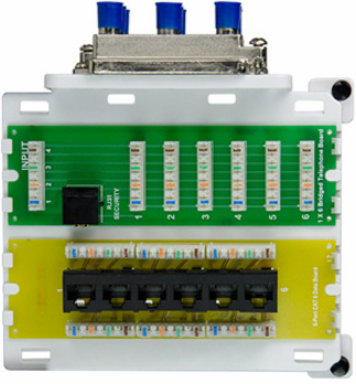

The Trio Combo Module with Cat6 Data is designed to distribute video (Coax), voice (Telephone) and data (Ethernet) services from a single compact structured wiring module throughout the home. The Trio Combo module includes an MDU Mounting Bracket (AC1042), an 8-way 2 GHz Video Splitter (VM0208), 6-way Phone Module (TM0106) and 6-way Cat6 Data Board (AC0606).
Features
- Includes an MDU Mounting Bracket (AC1042), an 8-way 2 GHz Video Splitter (VM0208), 6-way Phone Module (TM0106) and 6-way Cat6 Data Board (AC0606)
- Compact design maximizes space and service distribution options within the enclosure
- Video Splitter is rated to 2 GHz and supports up to 8 locations
- Phone Module supports punchdown termination of up to 6 locations and includes RJ31x line seizure port
- Data Board supports punchdown termination of up to 6 Cat6 data lines for easy interface with the home network
- Strategically placed cable tie locations keeps wiring terminations tidy
- UL Listed
Documentation & Downloads
Specifications
Dimensions
| Depth (Metric) | 88mm |
|---|---|
| Height (Metric) | 169mm |
| Width (Metric) | 163mm |
| Primary Packaging Weight (Metric) | 0.34kg |
| Product Weight (US) | .70lbs |
| Depth (US) | 3.5" |
|---|---|
| Height (US) | 6.7" |
| Width (US) | 6.4" |
| Product Weight (Metric) | .32kg |
Technical Information
| Material | Plastic |
|---|---|
| Operating Temperature (Celsius) | 0°C - 50°C |
| Mounting | Enclosure / Snap in Modules / Screw down Splitter |
|---|
Listing Agencies/Third Party Certifications
| RoHS | Yes |
|---|
General Info
| Cable Type | Cat 6, Coaxial |
|---|---|
| Number Of Ports | 21 |
| Color | White |
|---|
