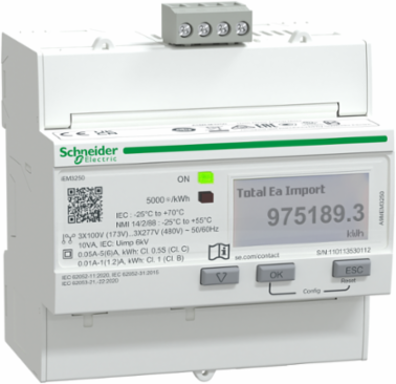

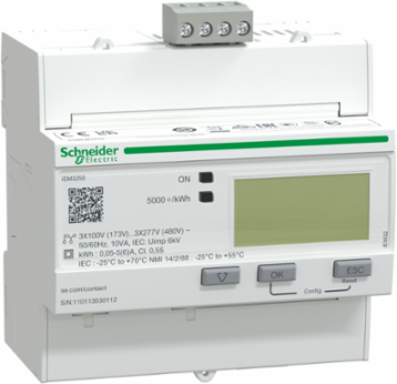

Schneider Electric A9MEM3250 Acti9 iEM3250 Energy Meter - CT - Modbus, 3 Phase, 90 mm Width
Schneider Electric A9MEM3250 Acti9 iEM3250 Energy Meter - CT - Modbus, 3 Phase, 90 mm Width
- MPN: A9MEM3250
- PPN: SCH-A9MEM3250
- UNSPSC: 40151552
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$498.42/ EA
Description
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-22, and per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. No secondary communication ports. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g). Compatible with power management software to take advantage of the IoT digital power installation.
Features
- Feature-rich power and energy meters
- Simple energy monitoring compatible with Building management systems
- Compact, DIN rail mounted form factor
- Modbus 485 communication port for remote monitoring
- Identify energy savings opportunities with precision accuracy of Class 0.5S
- Collect and analyze energy consumption data
- 1Amps or 5Amps CT operated in three phase network
- Three phase DIN rail mount power and energy meter
- Large LCD display for easy reading
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Color
- White
Conformance Attributes
- Product Certifications
- KZ, CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), cULus UL 61010-1 safety), cULus EN 61010-1 safety), EAC sub-meter), KZ NMI M 6-1, NMI NMI M 6-1
StandardsBS IEC 61557-12:2021, EN 61557-12:2021, BS IEC 61326-1, EN 61326-1, BS IEC 62052-11:2020, EN 62052-11:2020, BS IEC 62053-21, EN 62053-21, BS EN 62053-22:2020, IEC 62053-22:2020, EN 62052-22, BS IEC 62052-31:2015, EN 62052-31:2015, BS EN 61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010, BS IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, ANSI C12.20
Complementary Attributes
- Line Rated Current
- 5 A, 1 A
- Maximum Value Measured
- 99999999 MWh
Rated Voltage100-277 V, 173-480 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Device Application
- sub billing, partial meter
- Market Segment
- buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocation, small commercial, residential, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
- Poles Description
- 3P, 3P + N, 1P + N
- Carbon Footprint Of The Distribution Phase A4
- 0.8197876307616909, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.009827209601491214
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 47 kg CO2 eq., 47.49835981254568
- Connections Terminals3
- current circuit screw terminals 6-6 mm², voltage circuit screw terminals 2.5-2.5 mm²
- Local Publishable Date
- 2025-06-18
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Device Short Name
- iEM3250
- Energy Efficiency Optimized
- False
- Mounting Mode
- clip-on
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- Acti9
- Sampling Rate
- 32 samples/cycle
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- N
- Pep Code
- ENVPEP1112076EN
- Pep Verification Date
- 2025-03-27
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global
- Product Name
- Acti9 iEM3000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Local SignallingGreen indicator light power ON, Yellow flashing LED accuracy checking, Yellow indicator light communications are active on the Modbus port (Modbus)
Network Frequency50 Hz, 60 Hz
Type Of Measurementactive energy, current, voltage, active power
Carbon Footprint Of The End Of Life Phase C1 To C40.7190746806713052, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A310 kg CO2 eq., 10.490953297701278
Connections Terminalscurrent circuit screw terminals 6-6 mm², voltage circuit screw terminals 2.5-2.5 mm²
Local Data StatusPublishable
ManufacturerSchneider Electric
ServiceabilityNo
Field Service DivisionDPIBS
Legacy WEEE ScopeIn
SundahusB
End Of Life Doc RefENVEOLI111261EN_V2
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Compatibility CodeiEM3250
Display TypeLCD display
Measurement Current1-32767000 mA
Mounting SupportDIN rail
Package Weight Lbs348.000 g
Product Or Component Typeenergy meter
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint60 kg CO2 eq.
Medium DesciEM3250 energy meter - CT - Modbus
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionActi 9 iEM31xx / iEM32xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; China, CN
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Europe, EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 59.538002631281444
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP1112076EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1112076EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-70 °C - IEC, -25-70 °C - IEC, -25-70 °C - IEC, -25-70 °C - IEC
IP Degree Of ProtectionIP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 MM Pitches10
Circularity ProfileENVEOLI111261EN_V2
Operating Altitude< 9842.52 ft (3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % 50-50 °C
Pep Verification Date2025-03-27
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- energy meter
Output Attributes
- Number Of Outputs
- 0
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- current transformer 1 A or 5 A
Number Of Inputs0
Specifications
- Depth
- 69 mm
