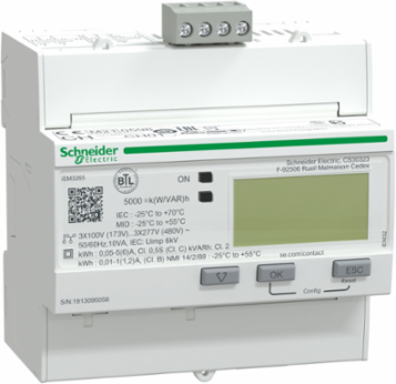

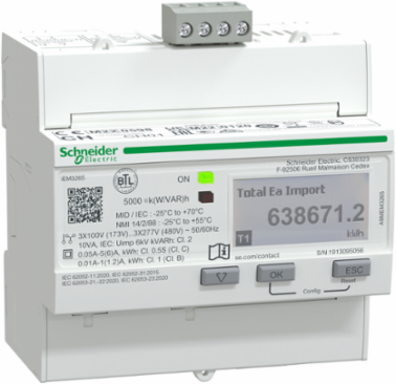

Schneider Electric A9MEM3265 Acti9 iEM3265 Energy Meter - 3-Phase, BACnet, 1A/5A CT, MID Certified
Schneider Electric A9MEM3265 Acti9 iEM3265 Energy Meter - 3-Phase, BACnet, 1A/5A CT, MID Certified
- MPN: A9MEM3265
- PPN: SCH-A9MEM3265
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$656.03/ EA
Description
Acti9 iEM3265 Energy Meter - 3-Phase, BACnet, 1A/5A CT, MID Certified
Specifications
Communications & Management Attributes
- Communication Port Protocol
- BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds 4000 V
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Color
- White
Conformance Attributes
- Product Certifications
- MID EN 50470-1 sub-meter), CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), cULus UL 61010-1 safety), cULus EN 61010-1 safety), EAC EN 50470-3 sub-meter), RCM EN 62052 sub-meter), KZ EN 50470-3 sub-meter), METAS EN 50470-1 sub-meter), MID EN 50470-3 sub-meter), NMI NMI M 6-1
StandardsBS IEC 61557-12:2021, EN 61557-12:2021, BS IEC 61326-1, EN 61326-1, BS IEC 62052-11:2020, EN 62052-11:2020, BS IEC 62053-21, EN 62053-21, BS IEC 62053-22:2020, EN 62052-22, BS IEC 62053-23:2020, EN 62052-23, BS IEC 62052-31:2015, EN 62052-31:2015, BS EN 61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010, BS IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, BS EN 50470-3, BS EN 50470-1, ANSI C12.20
Complementary Attributes
- Line Rated Current
- 5 A, 1 A
- Maximum Value Measured
- 99999999 MWh
Rated Voltage100-277 V, 173-480 V
Important Information Attributes
- Device Application
- sub billing, partial meter, multi-tariff
- Market Segment
- buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocation, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
- Poles Description
- 3P, 1P + N, 3P + N
- Connections Terminals
- current circuit screw terminals 6-6 mm², voltage circuit screw terminals 2.5-2.5 mm²
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.7418040527614902, 0.7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 11 kg CO2 eq., 10.82256389044471
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Sundahus
- B
- End Of Life Doc Ref
- ENVEOLI111261EN_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1308
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- iEM3265
- Display Type
- LCD display
- Information Displayed
- tariff 4)
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Mounting Support
- DIN rail
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- energy meter
- Returnability
- No
- Software Version
- v6.2.4
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1112076EN
- Pep Verification Date
- 2025-03-27
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Product Weight In G2
- 359
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In 2
- 20
- Height Nominal
- 95 mm
Local SignallingGreen indicator light power ON, Yellow flashing LED accuracy checking, alarm overload
Network Frequency60 Hz, 50 Hz
Type Of Measurementactive and reactive energy, active and reactive power, current, voltage
Carbon Footprint Of The Distribution Phase A40.8457004581708248, 0.8 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.010137839790044099
Carbon Footprint Of The Use Phase B2 B3 B4 B647 kg CO2 eq., 47.49835981254568
Local Publishable Date2025-06-18
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionDPIBS
Legacy Weee ScopeIn
Scope PerimeterAt least in Europe
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Device Short NameiEM3265
Energy Efficiency OptimizedFalse
Measurement Current1-32767000 mA
Mounting Modeclip-on
Overvoltage CategoryIII
Product NameActi9 iEM3000
RangeActi9
Sampling Rate32 samples/cycle
Sustainable PackagingNo
Total Lifecycle Carbon Footprint60 kg CO2 eq.
Warranty In Months18
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionActi 9 iEM31xx / iEM32xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.
Functional Unit Unitunit
Reference Lifetime In Y210
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global
Offer Owner Code190781
Width Nominal90 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C - IEC, -25-70 °C - IEC, -25-70 °C - IEC, -25-70 °C - IEC
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 59.918566053712745
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP1112076EN
- Operating Altitude
- < 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % 50-50 °C
- Pep Verification Date
- 2025-03-27
- Psr Version
- PSR-0005-ed3-2023 06 06
Ip Degree Of ProtectionIP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 Mm Pitches10
Circularity ProfileENVEOLI111261EN_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1112076EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 digital (static)
Output Voltage5...40 V DC@50 mA
Input Attributes
- Analogue Input Type
- current transformer 1 A or 5 A
Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC
Specifications
- Depth
- 69 mm
