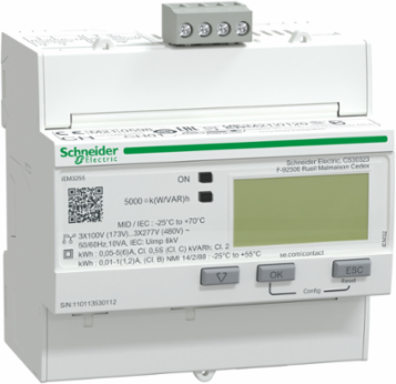

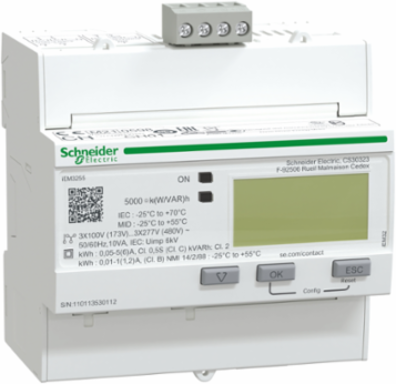

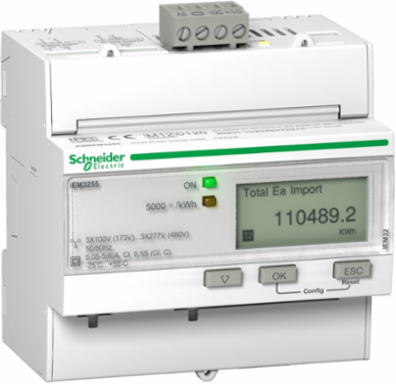

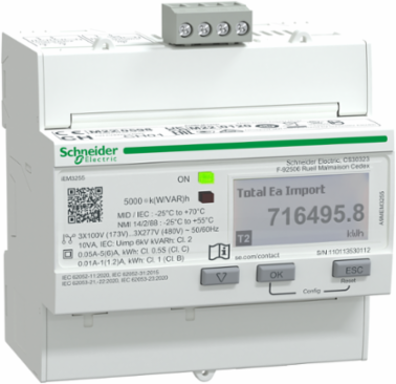

Schneider Electric A9MEM3255 Acti9 iEM3255 Energy Meter, 3 Phase, Modbus, LCD Display, 1 Digital Input
- MPN: A9MEM3255
- PPN: SCH-A9MEM3255
CAD
$545.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-22, Active Energy: class C per EN 50470-3 and Active Energy: class 0.5S per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g). Compatible with power management software to take advantage of the IoT digital power installation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Costa Rica, France, India
Depth69 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Color
- White
Complementary Attributes
- Line Rated Current
- 5 A, 1 A
- Maximum Value Measured
- 99999999 MWh
Rated Voltage100-277 V, 173-480 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Device Application
- multi-tariff, partial meter, sub billing
- Market Segment
- buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboardbuildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboardbuildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocation, small commercial, residential, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
- Number Of Poles
- + N, 1P + N, 3P
- Certificate Agency
- MID EN 50470-1 sub-meter)CE IEC 61010-1 safety)CE EN 61557-12 power monitor)CE EN/IEC 61326-1 EMC)UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC)cULus UL 61010-1 safety), cULus EN 61010-1 safety), EAC EN 50470-3 sub-meter)RCM EN 62052 sub-meter), KZ EN 50470-3 sub-meter)METAS EN 50470-1 sub-meter), MID EN 50470-3 sub-meter)NMI NMI M 6-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7570947212585236, 0.8 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 11.045647380108472
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310049EN_Web.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=ESXP1G003EN_web.pdf, PLSED310049EN, ESXP1G003EN
- Local Publishable Date
- 2025-06-18
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Sundahus
- B
- End Of Life Doc Ref
- ENVEOLI111261EN_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1214
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- iEM3255
- Display Type
- LCD display
- Information Displayed
- tariff 4)
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Mounting Support
- DIN rail
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- energy meter
- Returnability
- No
- Software Version
- v6.2.4
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Acti 9 iEM31xx / iEM32xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 20
- Width Nominal
- 90 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Local SignallingGreen indicator light power ONYellow flashing LED accuracy checkingalarm overload, Yellow indicator light communications are active on the Modbus port (Modbus)
Network Frequency60 Hz, 50 Hz
Type Of Measurementactive and reactive energy, active and reactive power, current, voltage
Carbon Footprint Of The Distribution Phase [A4]0.863132723882424, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.010346809189616037
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]47 kg CO2 eq., 47.49835981254568
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameiEM3255
Energy Efficiency OptimizedFalse
Measurement Current1-32767000 mA
Mounting Modeclip-on
Overvoltage CategoryIII
Product NameActi9 iEM3000
RangeActi9
Sampling Rate32 samples/cycle
Sustainable PackagingNo
Total Lifecycle Carbon Footprint60 kg CO2 eq.
Pep CodeENVPEP1112076EN
Pep Verification Date2025-03-27
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global
Height Nominal95 mm
Connections - Terminalscurrent circuit screw terminals 6-6 mm²voltage circuit screw terminals 2.5-2.5 mm²
Package Weight(Lbs)365.400 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C - IEC, -25-70 °C - IEC-25-70 °C - IEC, -25-70 °C - IEC
- Operating Altitude
- < 9842.52 ft (3000 m), < 9842.52 ft (3000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- 9 Mm Pitches
- 10
- Environmental Disclosure
- ENVPEP1112076EN
- Ip Degree Of Protection
- IP40 front panel: conforming to IEC 60529IP20 body: conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % 50-50 °C
- Pep Verification Date
- 2025-03-27
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint60.17458144698472
Circularity ProfileENVEOLI111261EN_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1112076EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 digital (static)
Output Voltage5...40 V DC@50 mA
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- current transformer 1 A or 5 A
Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC
