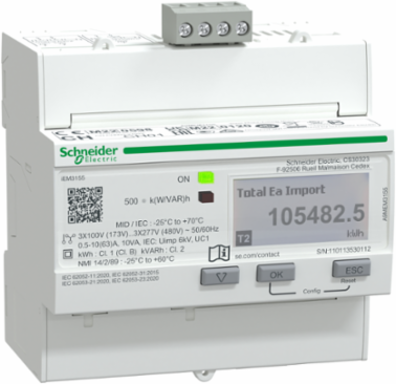

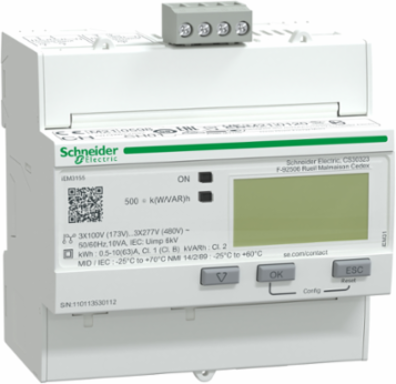

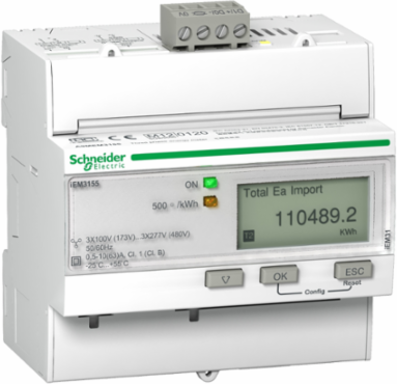

Schneider Electric A9MEM3155 Acti9 iEM3155 Energy Meter, 63A, Modbus, Multi-Tariff, LCD Display
Schneider Electric A9MEM3155 Acti9 iEM3155 Energy Meter, 63A, Modbus, Multi-Tariff, LCD Display
- MPN: A9MEM3155
- PPN: SCH-A9MEM3155
- UNSPSC: 40151552
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$603.49/ EA
Description
Acti9 iEM3155 Energy Meter, 63A, Modbus, Multi-Tariff, LCD Display
Features
- Feature-rich power and energy meters
- Simple energy monitoring compatible with Building management systems
- Compact, DIN rail mounted form factor
- Modbus 485 communication port and digital output for remote monitoring
- Identify energy savings opportunities with precision accuracy of Class 1.0
- Collect and analyze energy consumption data
- Direct connect up to of 63Amps in three phase network
- Three phase DIN rail mount power and energy meter
- Large LCD display for easy reading
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Color
- White
Conformance Attributes
- Product Certifications
- MID EN 50470-1 sub-meter), CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), cULus UL 61010-1 safety), cULus EN 61010-1 safety), EAC EN 50470-3 sub-meter), RCM EN 62052 sub-meter), KZ EN 50470-3 sub-meter), METAS EN 50470-1 sub-meter), MID EN 50470-3 sub-meter), NMI NMI M 6-1
StandardsBS IEC 61557-12:2021, EN 61557-12:2021, BS IEC 61326-1, EN 61326-1, BS IEC 62052-11:2020, EN 62052-11:2020, BS IEC 62053-21, EN 62053-21, BS IEC 62053-23:2020, EN 62052-23, BS IEC 62052-31:2015, EN 62052-31:2015, BS EN 61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010, BS IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, BS EN 50470-3, BS EN 50470-1, ANSI C12.16
Complementary Attributes
- Rated Voltage
- 100-277 V, 173-480 V
- Maximum Value Measured
- 99999999.9 kWh
Line Rated Current63 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Device Application
- multi-tariff, sub billing, partial meter
- Market Segment
- buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocation, small commercial, residential, buildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
- Poles Description
- 3P + N, 1P + N, 3P
- Carbon Footprint Of The Distribution Phase A4
- 1.083627328018327, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.01298998970312057
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 47 kg CO2 eq., 47.49835981254569
- Local Publishable Date
- 2025-06-18
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Short Name
- iEM3155
- Energy Efficiency Optimized
- False
- Information Displayed
- tariff 4)
- Mounting Mode
- clip-on
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- Acti9
- Sampling Rate
- 32 samples/cycle
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- iEM3155 energy meter - 63 A - Modbus - 1 digital I - 1 digital O - multi-tariff - MID
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Acti 9 iEM31xx / iEM32xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Product Name
- Acti9 iEM3000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Local SignallingGreen indicator light power ON, Yellow flashing LED accuracy checking, alarm overload, Yellow indicator light communications are active on the Modbus port (Modbus)
Network Frequency60 Hz, 50 Hz
Type Of Measurementactive and reactive energy, active and reactive power, current, voltage
Carbon Footprint Of The End Of Life Phase C1 To C40.9505010146804609, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A314 kg CO2 eq., 13.86735206017985
Local Data StatusPublishable
ManufacturerSchneider Electric
ServiceabilityNo
Field Service DivisionDPIBS
Legacy WEEE ScopeIn
SundahusB
End Of Life Doc RefENVEOLI111261EN_V2
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Compatibility CodeiEM3155
Display TypeLCD display
Halogen Free StatusHalogen free plastic parts product
Measurement Current0-63 A
Mounting SupportDIN rail
Package Weight Lbs460.400 g
Product Or Component Typeenergy meter
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint63 kg CO2 eq.
Connections Terminalsscrew terminals 16-16 mm²
Stocking FlagY
Pep CodeENVPEP1112076EN
Pep Verification Date2025-03-27
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourcereferent product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Global Commercial StatusCommercialised
Connections Terminals3screw terminals 16-16 mm²
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- 9 MM Pitches
- 10
- Circularity Profile
- ENVEOLI111261EN_V2
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1112076EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC, -25-70 °C - IEC, -25-60 °C - IEC, -25-60 °C - IEC, -25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC
IP Degree Of ProtectionIP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint63.41283020512745
Ambient Air Temperature For Storage-40-85 °C
Environmental DisclosureENVPEP1112076EN
Operating Altitude< 9842.52 ft (3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % 50-50 °C
Pep Verification Date2025-03-27
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- energy meter
Output Attributes
- Number Of Outputs
- 1 digital (static)
Output Voltage5...40 V DC@50 mA
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- direct connection
Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC
Specifications
- Depth
- 69 mm
