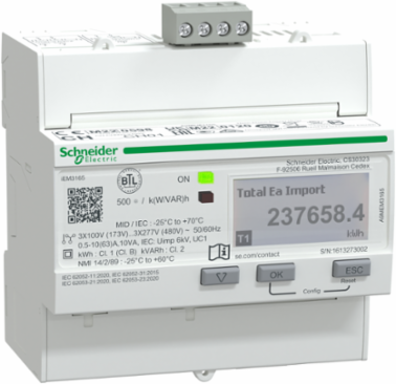

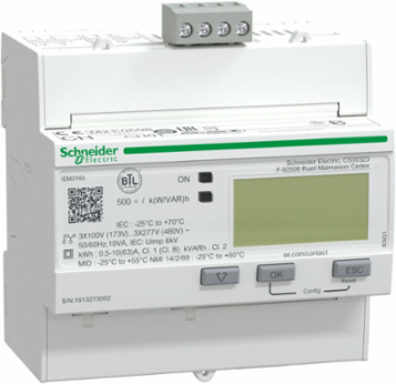

Schneider Electric A9MEM3165 Acti9 iEM3165 Energy Meter 63A BACnet 1 Digital Input 1 Output
- MPN: A9MEM3165
- PPN: SCH-A9MEM3165
CAD
$712.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Depth69 mm
Communications & Management Attributes
- Communication Port Protocol
- BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds 4000 V
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Color
- White
Complementary Attributes
- Rated Voltage
- 100-277 V, 173-480 V
- Maximum Value Measured
- 99999999.9 kWh
Line Rated Current63 A
Important Information Attributes
- Device Application
- multi-tariff, partial meter, sub billing
- Network Frequency
- 60 Hz, 50 Hz
- Type Of Measurement
- active and reactive energy, active and reactive power, current, voltage
- Carbon Footprint Of The Distribution Phase [A4]
- 1.0859830396009758, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.013018228811170833
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 47 kg CO2 eq., 47.49835981254568
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- iEM3165
- Energy Efficiency Optimized
- False
- Local Signalling
- Green indicator light power ONYellow flashing LED accuracy checkingalarm overload
- Metering Type
- active, reactive, apparent energy (signed, four quadrant)
- Mounting Support
- DIN rail
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- energy meter
- Returnability
- No
- Software Version
- v6.2.4
- Technology Type
- electronic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Acti 9 iEM31xx / iEM32xx series is a three-phase energy meter with an LCD display. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement during 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 20
- Width Nominal
- 90 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Market Segmentbuildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: panelboardbuildings large building cost management: billing: sub feeder, buildings large building cost management: billing: panelboardbuildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: panelboard, data center cost management: cost allocation, healthcare cost management: cost allocation, industry cost management: cost allocationbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: panelboard, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing, healthcare cost management: billing, industry cost management: billing, buildings small building cost management: cost allocation: main incomer
Number Of Poles1P + N, + N, 3P
Certificate AgencyMID EN 50470-1 sub-meter)CE IEC 61010-1 safety)CE EN 61557-12 power monitor)CE EN/IEC 61326-1 EMC)UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC)cULus UL 61010-1 safety), cULus EN 61010-1 safety), EAC EN 50470-3 sub-meter)RCM EN 62052 sub-meter), KZ EN 50470-3 sub-meter)METAS EN 50470-1 sub-meter), MID EN 50470-3 sub-meter)NMI NMI M 6-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9525673212341141, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 13.897498477701982
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN
Local Publishable Date2025-06-18
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
SundahusB
End Of Life Doc RefENVEOLI111261EN_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1308
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeiEM3165
Display TypeLCD display
Information Displayedtariff 4)
Measurement Current0-63 A
Mounting Modeclip-on
Overvoltage CategoryIII
Product NameActi9 iEM3000
RangeActi9
Sampling Rate32 samples/cycle
Sustainable PackagingNo
Total Lifecycle Carbon Footprint63 kg CO2 eq.
Pep CodeENVPEP1112076EN
Pep Verification Date2025-03-27
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global
Height Nominal95 mm
Connections - Terminalsscrew terminals 16-16 mm²
Package Weight(Lbs)458.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC, -25-70 °C - IEC, -25-60 °C - IEC, -25-60 °C - IEC-25-55 °C - MID, -25-55 °C - MID, -25-70 °C - IEC
- Operating Altitude
- < 9842.52 ft (3000 m), < 9842.52 ft (3000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- 9 Mm Pitches
- 10
- Environmental Disclosure
- ENVPEP1112076EN
- Ip Degree Of Protection
- IP40 front panel: conforming to IEC 60529IP20 body: conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % 50-50 °C
- Pep Verification Date
- 2025-03-27
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint63.447426879893925
Circularity ProfileENVEOLI111261EN_V2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1112076EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- energy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 1 digital (static)
Output Voltage5...40 V DC@50 mA
Input Attributes
- Analogue Input Type
- direct connection
Number Of Inputs1 digital 0...5 V/11...40 V 24 V DC
