Fluke Fluke 28 II Fluke 28 II Rugged Digital Multimeter Fluke 28 II
- MPN: Fluke 28 II
- UPC: 095969461719
- PPN: FLU-FLUKE-28II
CAD
$1062.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

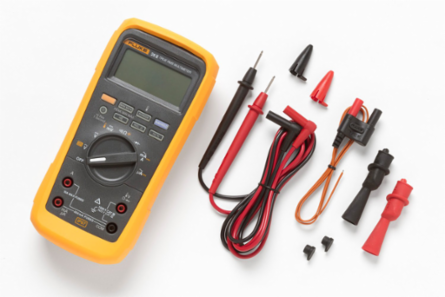

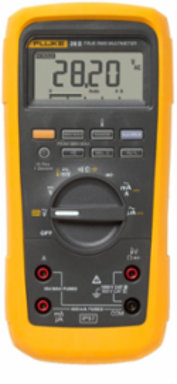

Fluke 28 II Rugged Digital Multimeter Fluke 28 II
Documentation & Downloads
Specifications
General Specifications
- Display Bar graph/backlight
- Yes/Yes
- Data storage
- Min/Max/Avg: Yes || Reading hold: Yes
- Other features Battery type
- Three AA batteries
- Warranty and protection External protection
- Rubber holster
- Warranty and protection Dustproof/waterproof
- Yes, IP 67 rated
- Warranty and protection Size (H x W x L) with holster
- 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in)
Data storage Peak transient capture250 μS
Other featuresRelative readings (zero): Yes
Warranty and protectionSafety rating: CAT IV 600 V/CAT III 1000 V || Mine safety: MSHA Approved
Warranty and protection Drop test10 feet drop test
Warranty and protection WarrantyLimited lifetime
Warranty and protection Weight with holster698.5 g (1.54 lb)
Accuracy Specifications
- DC voltage Range
- 0.1 mV to 1000 V
- AC voltage Range
- 0.1 mV to 1000 V
- DC current Range
- 0.1 μA to 10 A
- AC current Range
- 0.1 μA to 10 A
- Resistance Range
- 0.1 Ω to 50 MΩ
- Capacitance
- 1 nF to 9999 μF
- Temperature
- -200°C to +1090°C
- Compliance
- CAT IV 600 V , CAT III 1000 V
- Power
- Three AA batteries
DC voltage Accuracy0.05% + 1
AC voltage Accuracy0.7% + 4
DC current Accuracy0.2% + 4
AC current Accuracy1.0% + 2
Display counts6000
Frequency0.5 Hz to 199.99 kHz
Low pass filter (Measurement on VSD’s)Yes
IP ratingIP 67
Battery life800 hours
