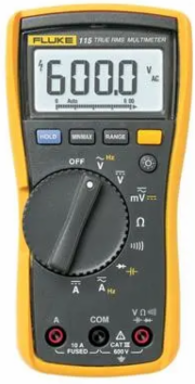

Fluke FLUKE 115 Fluke 115 Digital Multimeter for Technicians

MPN: FLUKE 115
UPC: 095969324182
PPN: FLU-FLUKE-115

$370.93

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Fluke 115 Digital Multimeter for Technicians

Documentation & Downloads

Specifications

Key Specifications

DC millivolts Range/resolution	600.0 mV / 0.1 mV
DC volts Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
AC millivolts1True RMS Range/resolution	600.0 mV / 0.1 mV
AC volts1True RMS Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
Continuity Range/resolution	600 Ω / 1 Ω
Ohms Range/resolution	600.0 Ω / 0.1 Ω6.000 kΩ / 0.001 kΩ60.00 kΩ / 0.01 kΩ600.0 kΩ / 0.1 kΩ6.000 MΩ / 0.001 MΩ \|\| 40.00 MΩ / 0.01 MΩ
Diode test Range/resolution	2.00 V / 0.001 V
Capacitance Range/resolution	1000 nF / 1 nF10.00 μF / 0.01 μF100.0 μF / 0.1 μF9999 μF / 1 μF100 μF to 1000 μF \|\| > 1000 μF
Lo-Z capacitance Range	1 nF to 500 μF
AC amps True RMS(45 Hz to 500Hz) Range/resolution	6.000 A / 0.001 A10.00 A / 0.01 A
DC amps Range/resolution	6.000 A / 0.001 A10.00 A / 0.01 A
Hz (V or A input)2 Range/resolution	99.99 Hz / 0.01 Hz999.9 Hz / 0.01 Hz9.999 kHz / 0.001 kHz50.00 kHz / 0.01 kHz

DC millivolts Accuracy	± ([% of reading] + [counts]): 0.5% + 2
DC volts Accuracy	± ([% of reading] + [counts]): 0.5% + 2
AC millivolts1True RMS Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
AC volts1True RMS Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
Continuity Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of500 μs or longer.
Ohms Accuracy	0.9% + 1 \|\| 5% + 2
Diode test Accuracy	0.9% + 2
Capacitance Accuracy	1.9% + 2 \|\| 5% + 20%
Lo-Z capacitance Accuracy	10% + 2 typical
AC amps True RMS(45 Hz to 500Hz) Accuracy	1.5% + 320 A overload for 30-seconds max
DC amps Accuracy	1.0% + 320 A overload for 30-seconds max
Hz (V or A input)2 Accuracy	0.1% + 2
