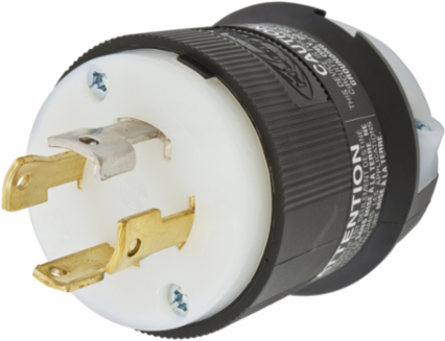

Hubbell Wiring Device-Kellems HBL2751 Twist-Lock Male Plug, 30A 3-Phase 120/208V AC, 4-Pole, Black and White
- MPN: HBL2751
- UPC: 783585039435
- PPN: HBL-HBL2751
- UNSPSC: 39121402
CAD
$107.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 4-Wire Non-Grounding, L18- 30P, Screw Terminal, Black and White
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2751 AutoCAD Drawing
- Current / Amperage Rating
- 30 A
- Height
- 2.75 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- Black, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 4-Pole
- Phase
- 3 Phase WYE
- Special Features
- Standard Product
- Type
- Plugs
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.3 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 4-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG PLUG, 30A 3PH 120/208V, L18-30P, B/W
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.350"-1.150" (9-29)
- Cord Diameter
- 0.350-1.150 in
- Material
- Nylon
- BOX SIZE
- 7.900x12.500x8.900 (in)
- Carton - Number of Sub Packs
- 30
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585039435
- Case Weight
- 10.960 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.400 in
- Pallet Weight
- 1116.900 lb.
- NAICS Code
- 335931A102
Country of OriginUnited States
Dimensions2.33 in x 2.33 in x 2.75 in
Horsepower - Maximum2
Length2.33 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingL18- 30P
Number of Wires4-Wire
Size2.33 in x 2.33 in x 2.75 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating3 Phase WYE 120/208 VAC
Voltage Rating Description3 Phase WYE 120/208 VAC
Width2.33 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL18- 30P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2751
Cable Range0.350 - 1.150 in
Material - Mounting HardwareCord Mounted
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units30 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585039434
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
