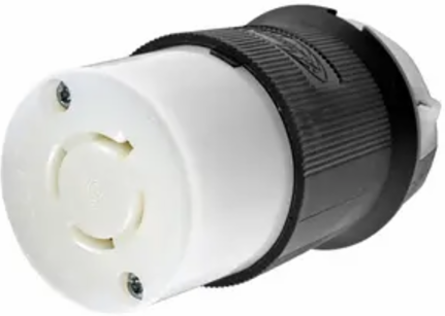

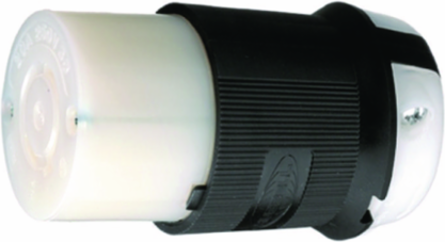

Hubbell Wiring Device-Kellems HBL2423 Insulgrip® Female Connector, 20A 3-Phase 250V, 3-Pole 4-Wire, Black and White
Hubbell Wiring Device-Kellems HBL2423 Insulgrip® Female Connector, 20A 3-Phase 250V, 3-Pole 4-Wire, Black and White
- MPN: HBL2423
- UPC: 783585038216
- PPN: HBL-HBL2423
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$72.11/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Screw Terminal, Black and White Nylon.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL2423 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Healthcare Application Guide
- Country of Origin
- United States
- Dimensions
- 2.33 in x 2.33 in x 3.86 in
- Horsepower - Maximum
- 3
- Length
- 2.33 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L15-20R
- Size
- 2.33 in x 2.33 in x 3.86 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Type
- Connector Body
- Voltage Rating Description
- 3 Phase 250 VAC
- Width
- 2.33 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L15-20R
- Number Of Wires
- 4-Wire
- Phase
- Three Phase
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2423
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585038215
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextEducation Application Guide
General Literature Asset 3 Display TextFood Processing Guide
Current / Amperage Rating20 A
Height3.86 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorNoir, blanc
InsulationInsulated Body
Number of Poles3-Pole
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating3 Phase 250 VAC
Weight0.40 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#16 AWG to #8 AWG
Description - InvoiceLKG CONN, 20A 3P 250V, L15-20R, B/W
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialNylon
BOX SIZE7.900x12.400x8.900 (in)
Carton - Number of Sub Packs30
Carton - SCC-14 Next Lower Level Sub Pack783585038216
Case Weight13.150 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight1300.500 lb.
