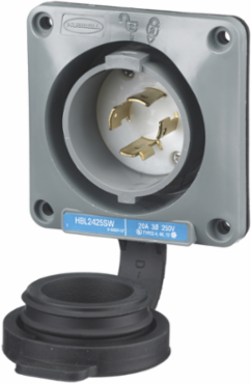

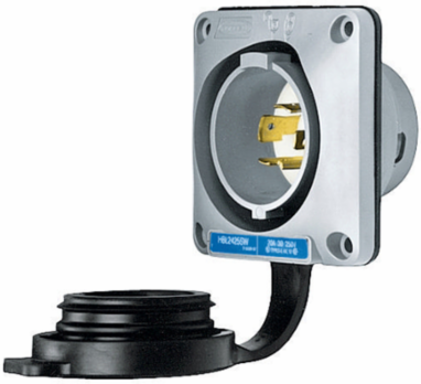

Hubbell Wiring Device-Kellems HBL2425SW Twist-Lock Watertight Flanged Inlet, 20A 250V AC, 3-Pole 4-Wire
Hubbell Wiring Device-Kellems HBL2425SW Twist-Lock Watertight Flanged Inlet, 20A 250V AC, 3-Pole 4-Wire
- MPN: HBL2425SW
- UPC: 783585231402
- PPN: HBL-HBL2425SW
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$121.38/ EA
Description
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20P, Screw Terminal, Gray.
Features
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Standard Product
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 3.75 in x 3.75 in x 2.44 in
- Height
- 2.44 in
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Color
- Gray, White
- Environmental Conditions
- Watertight
- NEMA Rating
- L15-20P
- Number of Wires
- 4-Wire
- Size
- 3.75 in x 3.75 in x 2.44 in
- Standard
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Type
- Flanged Inlet
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.75 lb.
- Connectivity
- Screw Terminals
- Nema Rating
- L15-20P
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A130
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Each - Width3.300 in
Horsepower - Maximum3
Length3.75 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles3-Pole
PhaseThree Phase
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating250 V
Voltage Rating Description250 V
Width3.75 in
Display SizeStandard Sized Product
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG WT S/SHRD FL-INLT, 20A3P 250V,L5-20P
Harmonization Code8536699999
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE4.700x9.800x9.900 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585231402
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
