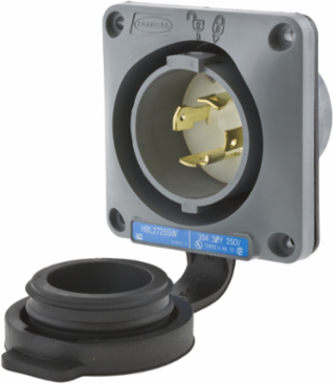

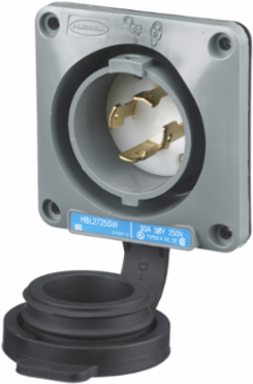

Hubbell Wiring Device-Kellems HBL2725SW Twist-Lock Watertight Flanged Inlet 30A 250V 3-Pole 4-Wire Gray
- MPN: HBL2725SW
- UPC: 783585231884
- PPN: HBL-HBL2725SW
- UNSPSC: 39121406
CAD
$193.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30P, Screw Terminal, Gray.
Features
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Additional
- Amperage Rating
- 30 A
- Number of Poles
- 3-Pole
- Phase
- Three Phase Delta
- Operating Temperature Range
- -40 C to 75 C
- Width
- 3.75 in
- Dimensions
- 3.75 in x 3.75 in x 2.44 in
- Mounting Type
- Flanged Screw Mounting
- Blade Material
- Brass
- Assembly Screws Material
- Stainless Steel
- NEMA Rating
- L15-30P
- Flammability Rating
- V0 per UL94 or CSA 22.2 No.0.17
- Current Interrupting
- Certified for full rated current
- Country of Origin
- PR
Voltage250 V AC
Number of Wires4-Wire
Dielectric StrengthWithstands 2,000 V minimum
Length3.75 in
Height2.44 in
MaterialThermoplastic (Gray PBT)
Terminal TypeBack Wired Screw Terminals
Terminal Screws Material#10-32 Brass (Phillips, Slotted, Robertson)
Mounting Screws MaterialStainless Steel
UL/CSA ComplianceUL Listed, CSA Certified to Type 4, 4X, 12
Moisture ResistanceType 4, 4X, 12, IP66
EU RoHS ComplianceYes
ColorGray
