Schmersal 101023561 Safety Switch TZG01/110, IP67, 50 mm Width, 106.5 mm Height, 2 Contacts
- MPN: 101023561
- PPN: SCM-101023561
CAD
$79.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

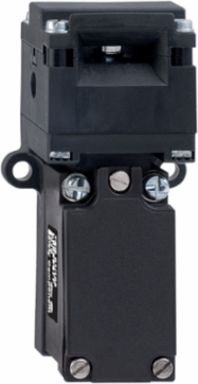

Safety Switch TZG01/110, IP67, 50 mm Width, 106.5 mm Height, 2 Contacts
Features
- Thermoplastic enclosure
- Long life

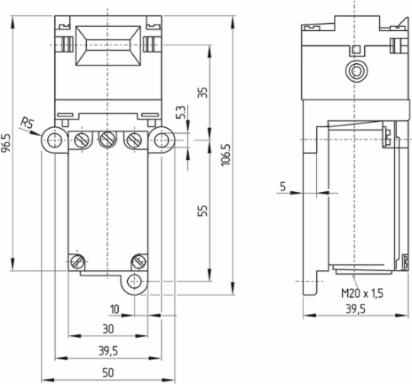

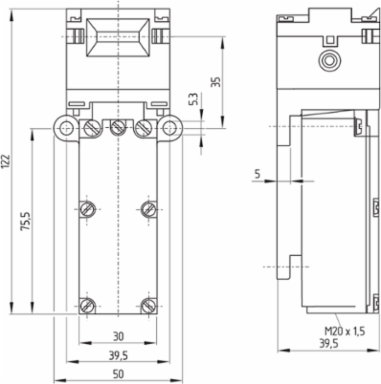

- 50 mm x 96,5mm / 122 mm x 39,5 mm
Documentation & Downloads
Specifications
Key Specifications
- Length
- 39.5 mm
Width50 mm
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 8 A
- Utilisation category DC-13
- 5 A
- Switching principle
- Slow action
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC

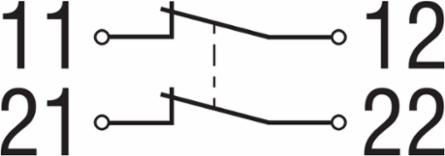

Switching elementOpener (NC)
Material of the contacts, electricalSilver
Mechanical data - Dimensions
- Width
- 50 mm
- Width of sensor
- 50 mm
Height, minimum106,5 mm
Height of sensor39.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 400 V
Rated impulse withstand voltage U2.5 kV
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
B1,000,000 Operations
General data - Features
- Number of safety contacts
- 2
General data
- Coding level according to EN ISO 14119
- Low
- Gross weight
- 174 g
Enclosure materialGlass-fibre, reinforced thermoplastic
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +70 °C
Mechanical data - Connection technique
- Termination
- Screw terminals
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Actuating speed, maximum0.2 m/s
Approvals - Standards
- Certificates
- CCC
