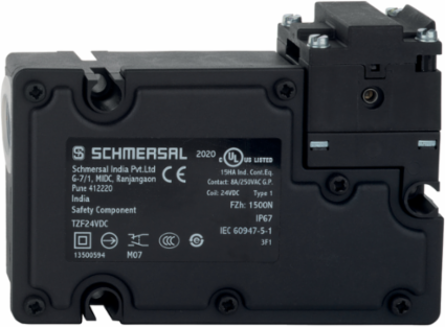

Schmersal 131010264 Electromechanical Solenoid Interlock 24 VDC, 1500 N Holding Force, IP65/IP67
- MPN: 131010264
- PPN: SCM-131010264
CAD
$474.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electromechanical Solenoid Interlock 24 VDC, 1500 N Holding Force, IP65/IP67
Features
- Thermoplastic enclosure
- Holding force 1500 N
Documentation & Downloads
Specifications

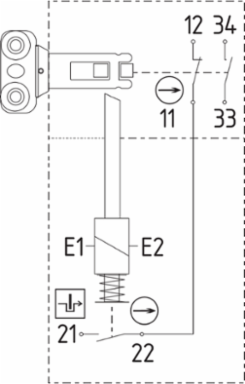

Electrical data
- Thermal test current
- 4 A
- Rated control voltage
- 24 VDC
- Electrical power consumption, maximum
- 8.5 W
- Material of the contacts, electrical
- Silver
Rated control voltage24 VAC/DC
Required rated short-circuit current1,000 A
Switching principleSlow action

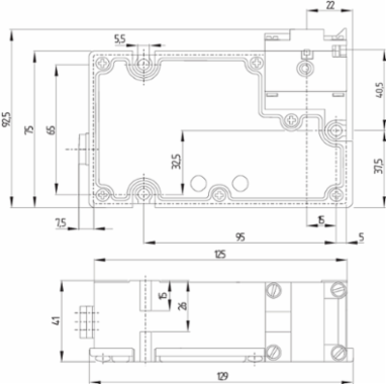

Mechanical data - Dimensions
- Length of sensor
- 41 mm
- Height of sensor
- 92.5 mm
Width of sensor129 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U2.5 kV
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- The actuator TZ/CO is included in delivery.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
B1,000,000 Operations
General data - Features
- Power to lock
- Yes
- Number of auxiliary contacts
- 1
Number of actuating directions4
Number of safety contacts2
General data
- Standards
- BG-GS-ET-19 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Gross weight
- 480 g
Coding level according to EN ISO 14119Low
Enclosure materialGlass-fibre, reinforced thermoplastic
Electrical data - Auxiliary contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Ambient conditions
- Degree of protection
- IP65 | IP67
Ambient temperature+0 ... +50 °C
Mechanical data - Connection technique
- Termination
- Screw terminals
- Cable section, maximum
- 1 x 1.5 mm²
Cable section, minimum1 x 0.5 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Latching force
- 20 N
- Positive break force, minimum
- 20 N
Holding force F1,500 N
Positive break travel3.5 mm
Actuating speed, maximum0.3 m/s
