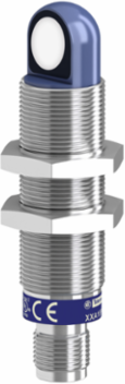

Telemecanique Sensors XXA18B1PM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical 90 deg M18, Sn=1 m, PNP, SYNC, connector M12

Ultrasonic sensors XX, ultrasonic sensor cylindrical 90 deg M18, Sn=1 m, PNP, SYNC, connector M12
  • MPN: XXA18B1PM12
  • UPC: 785901059868
  • PPN: TES-XXA18B1PM12
  • UNSPSC: 41111960

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$697.73/ EA

Description

Ultrasonic sensors XX, ultrasonic sensor cylindrical 90 deg M18, Sn=1 m, PNP, SYNC, connector M12

Specifications

Complementary

Repeat Accuracy
0.1 %
Maximum Switching Current
100 mA overload and short-circuit protection
Switching Frequency
11 Hz
Maximum Voltage Drop
2 V
Setting-Up
teach mode || configurator software
[Sa] Assured Operating Distance
0.105-1 m teach mode)
Marking
CE
Net Weight
0.055 kg
Maximum Differential Travel
4 mm
Function Available
with synchronisation mode || software configurable
Maximum Delay First Up
120 ms
Enclosure Material
Nickel Plated Brass
Front Material
epoxy || rubber || resin
Height18 mm
Minimum Size Of Detected Objectcylinder diameter 1 mm 600 mm
Maximum Delay Response45 ms
Status Ledoutput state 1 LED yellow) || echo state 1 LED green)
Transmission Frequency200 kHz
Threaded Length45 mm
Blind Zone105-105 mm
Current Consumption30 mA
Deviation Angle From 90° Of Object To Be Detected-10-10 °
Maximum Delay Recovery45 ms
Supply Voltage Limits10-30 V DC
Width18 mm
Depth79 mm

Specifications

[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Discrete Output Function
1 NO or 1 NC programmable
Range Of Product
Telemecanique Ultrasonic sensors XX
[Sd] Sensing Range
0.105-1 m
Wiring Technique
5-wire
Series Name
general purpose
Sensor Type
ultrasonic sensor
Sensor Design
cylindrical M18
Discrete Output TypePNP
Type Of Output Signaldiscrete
Sensor NameXXA
Materialmetal
Ip Degree Of ProtectionIP65 conforming to IEC 60529 || IP67
Detection Systemdiffuse with 90° head)
Electrical Connectionmale connector M12 5 pins
[Sn] Nominal Sensing Distance1-1 m adjustable with remote teach push-button || 1-1 m software with kit

Environment

Product Certifications
RCM || EAC || cULus || E2 || Ecolab
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-80 °C
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1803029EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
