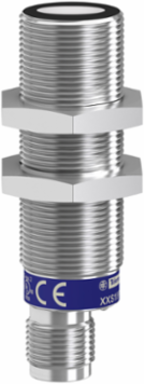

Telemecanique Sensors XXS18B1AM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12
- MPN: XXS18B1AM12
- UPC: 785901059882
- PPN: TES-XXS18B1AM12
- UNSPSC: 41111960
CAD
$697.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.105-1 m |
| Wiring Technique | 5-wire |
| Series Name | general purpose |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M18 |
| Analogue Output Function | 4...20 mA |
| Type Of Output Signal | analogue |
|---|---|
| Sensor Name | XXS |
| Material | metal |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 || IP67 |
| Detection System | diffuse |
| Electrical Connection | male connector M12 5 pins |
| [Sn] Nominal Sensing Distance | 1-1 m adjustable with remote teach push-button || 1-1 m software with kit |
Complementary
| Maximum Switching Capacity | 250 Ohm 12 V DC overload and short-circuit protection || 850 Ohm 24 V DC |
|---|---|
| Height | 18 mm |
| Status Led | output state 1 LED yellow) || echo state 1 LED green) |
| Transmission Frequency | 200 kHz |
| Threaded Length | 45 mm |
| Blind Zone | 105-105 mm |
| Current Consumption | 30 mA |
| Function Available | with synchronisation mode || software configurable |
| Maximum Delay First Up | 180 ms |
| Enclosure Material | Nickel Plated Brass |
| Front Material | epoxy || rubber || resin |
| Repeat Accuracy | 0.1 % |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 1 mm 600 mm |
| Setting-Up | teach mode || configurator software |
| [Sa] Assured Operating Distance | 0.105-1 m teach mode) |
| Marking | CE |
| Net Weight | 0.05 kg |
| Deviation Angle From 90° Of Object To Be Detected | -10-10 ° |
| Maximum Delay Recovery | 100 ms |
| Supply Voltage Limits | 10-30 V DC |
| Width | 18 mm |
| Depth | 64 mm |
Environment
| Product Certifications | EAC || E2 || RCM || cULus || Ecolab |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Standards | EN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1803029EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
