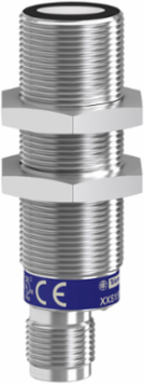

Telemecanique Sensors XXS18B1PM12 Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, PNP, SYNC, connector M12

MPN: XXS18B1PM12
UPC: 785901059776
PPN: TES-XXS18B1PM12
UNSPSC: 41111960

$697.73

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, PNP, SYNC, connector M12

Documentation & Downloads

Specifications

Key Specifications

[Us] Rated Supply Voltage	12...24 V DC reverse polarity protection
Discrete Output Function	1 NO or 1 NC programmable
Range Of Product	Telemecanique Ultrasonic sensors XX
[Sd] Sensing Range	0.105-1 m
Wiring Technique	5-wire
Series Name	general purpose
Sensor Type	ultrasonic sensor
Sensor Design	cylindrical M18

Discrete Output Type	PNP
Type Of Output Signal	discrete
Sensor Name	XXS
Material	metal
Ip Degree Of Protection	IP65 conforming to IEC 60529 \|\| IP67
Detection System	diffuse
Electrical Connection	male connector M12 5 pins
[Sn] Nominal Sensing Distance	1-1 m adjustable with remote teach push-button \|\| 1-1 m software with kit

Complementary

Repeat Accuracy	0.1 %
Maximum Switching Current	100 mA overload and short-circuit protection
Switching Frequency	11 Hz
Maximum Voltage Drop	2 V
Setting-Up	teach mode \|\| configurator software
[Sa] Assured Operating Distance	0.105-1 m teach mode)
Marking	CE
Net Weight	0.05 kg
Maximum Differential Travel	4 mm
Function Available	with synchronisation mode \|\| software configurable
Maximum Delay First Up	120 ms
Enclosure Material	Nickel Plated Brass
Front Material	epoxy \|\| rubber \|\| resin

Height	18 mm
Minimum Size Of Detected Object	cylinder diameter 1 mm 600 mm
Maximum Delay Response	45 ms
Status Led	output state 1 LED yellow) \|\| echo state 1 LED green)
Transmission Frequency	200 kHz
Threaded Length	45 mm
Blind Zone	105-105 mm
Current Consumption	30 mA
Deviation Angle From 90° Of Object To Be Detected	-10-10 °
Maximum Delay Recovery	45 ms
Supply Voltage Limits	10-30 V DC
Width	18 mm
Depth	64 mm

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1803029EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

Product Certifications	cULus \|\| RCM \|\| E2 \|\| EAC \|\| Ecolab
Resistance To Electromagnetic Fields	10 V/m level 3 IEC 61000-4-3
Vibration Resistance	+/-1 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-80 °C
Resistance To Fast Transients	1 kV level 3 IEC 61000-4-4

Ambient Air Temperature For Operation	-25-70 °C
Standards	EN/IEC 60947-5-2 \|\| CSA C22.2 No 14 \|\| UL 508
Shock Resistance	30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge	8 kV level 4 IEC 61000-4-2
