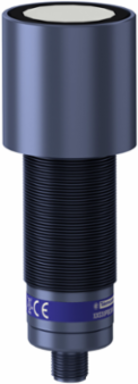

Telemecanique Sensors XXS30P8VPM12 Ultrasonic sensor, plastic, cylindrical M30, straight, sensing range 8 m, output 0-10 V
- MPN: XXS30P8VPM12
- PPN: TES-XXS30P8VPM12
CAD
$1643.82
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensor, plastic, cylindrical M30, straight, sensing range 8 m, output 0-10 V
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Thread type | M30 x 1.5 |
|---|---|
| Voltage drop | 2 V |
| Delay first up | 600 ms |
| Status LED | Output state: 1 LED (green/yellow), output state: 1 LED (multi-colour), echo state: 1 LED (green) |
| Setting-up | Configurator software teach mode |
| Delay recovery | 500 ms |
| Function available | Software configurable with synchronisation mode |
|---|---|
| Minimum size of detected object | Cylinder diameter 12 mm at 1.8 m |
| Current consumption | <= 50 mA |
| Maximum switching capacity | >= 1 kOhm overload and short-circuit protection |
| Switching frequency | <= 2 Hz |
Environment
| IP degree of protection | IP65 conforming to IEC 60529, IP67 |
|---|---|
| Standards | CSA C22.2 No 14 IEC 60947-5-2 UL 508 |
| Vibration resistance | +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Marking | CE cULus |
|---|---|
| Product certifications | cULus E2 Ecolab |
| Shock resistance | 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
Main
| Range of product | Telemecanique Ultrasonic sensors XX |
|---|---|
| Series name | General purpose |
| Sensor design | Cylindrical M30 |
| Material | Plastic |
| Discrete output function | 1 NO or 1 NC programmable |
| Analogue output function | 0...10 V |
| Discrete output type | PNP |
| Enclosure material | PBT |
| Sensor type | Ultrasonic sensor |
|---|---|
| Sensor name | XXS |
| Detection system | Diffuse |
| Type of output signal | Analogue + discrete |
| Wiring technique | 5-wire |
| Rated supply voltage (Us) | 24 V DC with reverse polarity protection |
| Electrical connection | Male connector M12 5 pins |
| Front material | Epoxy resin rubber |
