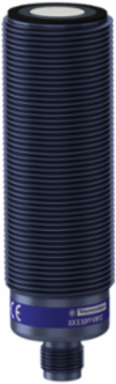

Telemecanique Sensors XXS30P2VM12 Ultrasonic sensor, plastic, cylindrical M30, straight, sensing range 2 m, output 0-10 V

MPN: XXS30P2VM12
PPN: TES-XXS30P2VM12

$720.05

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Ultrasonic sensor, plastic, cylindrical M30, straight, sensing range 2 m, output 0-10 V

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Function available	Software configurable with synchronisation mode
Delay first up	250 ms
Status LED	Output state: 1 LED (yellow), echo state: 1 LED (green)
Setting-up	Configurator software teach mode

Minimum size of detected object	Cylinder diameter 1 mm at 1.4 m
Current consumption	65 mA
Maximum switching capacity	>= 1 kOhm overload and short-circuit protection
Delay recovery	200 ms

Environment

IP degree of protection	IP65 conforming to IEC 60529, IP67
Standards	CSA C22.2 No 14 IEC 60947-5-2 UL 508
Vibration resistance	+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)

Marking	CE
Product certifications	cULus E2 Ecolab RCM
Shock resistance	30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27

Main

Range of product	Telemecanique Ultrasonic sensors XX
Series name	General purpose
Sensor design	Cylindrical M30
Material	Plastic
Wiring technique	5-wire
Rated supply voltage (Us)	24 V DC with reverse polarity protection
Enclosure material	PBT

Sensor type	Ultrasonic sensor
Sensor name	XXS
Detection system	Diffuse
Type of output signal	Analogue
Analogue output function	0...10 V
Electrical connection	Male connector M12 5 pins
Front material	Epoxy resin rubber
