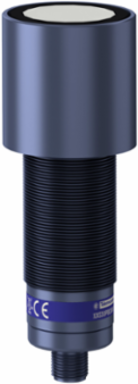

Telemecanique Sensors XXS30P8APM12 Ultrasonic sensor, plastic, cylindrical M30, straight, 8 m, 4...20 mA+PNP
Telemecanique Sensors XXS30P8APM12 Ultrasonic sensor, plastic, cylindrical M30, straight, 8 m, 4...20 mA+PNP
- MPN: XXS30P8APM12
- PPN: TES-XXS30P8APM12
- UNSPSC: 26111503
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1643.82/ EA
Description
The XX range is an offer of sensors using the ultrasonic technology for the detection of any material, without contact. This diameter 30mm cylindrical ultrasonic sensor (diffuse system), has a straight detection axis and a sensing distance of 8 meters. It has a 4mA to 20mA analog output + PNP (one analogic output and one digital output with NO or NC configurable by software). E2 and ECOLAB certified, this ultrasonic sensor is suitable for use in harsh conditions. It can operate in very cold (-25°C) and hot environments (+70°C). Its sensing distance is 8m (adjustable). Its detection window is adjustable remotly or by using the external teachbutton XXZPB100. It has a supply voltage of 12V to 24V DC. This sensor is configurable by software. The software enables users to quickly find the optimal sensing solution for their applications. An interface unit connects the sensor to the PC via a USB connection. This sensor features a cylindrical boby, diameter 30mm, made of plastic (PBT) and a M12, 5-pin connector. The sensing face is made of epoxy, resin and rubber. It weighs 0.210kg. It has LED indicators for output state and echo state. This general purpose ultrasonic sensor is suitable for assembly, conveying and packaging applications. It is cULus with class 2 power supply, E2, EAC, RCM and ECOLAB certified. It meets EN/IEC 60947-5-2, UL 508 and CSA C22.2 n° 14 standards. Dedicated pre-wired connectors (straight or elbowed) and a fixing clamp can be purchased separately. This Ø30 sensor features a M12 connector for an easy connection. It can easily be mounted with the fixing clamp XXZB130, to be ordered separately. The XX range Ultrasonic Sensors perform contactless, reliable, and high-performance detection regardless of the target’s shape, texture, color, or transparency. Capable of withstanding even the harshest industrial environments, XX Ultrasonic Sensors operate in diffuse, reflex, and thru-beam modes.
Specifications
Environment
- Product Certifications
- cULus || E2 || Ecolab
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Complementary
- Maximum Switching Capacity
- 250 Ohm 12 V DC overload and short-circuit protection || 850 Ohm 24 V DC
- Height
- 30 mm
- Minimum Size Of Detected Object
- cylinder diameter 12 mm 1.8 m
- Maximum Voltage Drop
- 2 V
- Setting-Up
- teach mode || configurator software
- [Sa] Assured Operating Distance
- 0.290-8 m teach mode)
- Marking
- CE || cULus
- Net Weight
- 0.14 kg
- Deviation Angle From 90° Of Object To Be Detected
- -4-12 °
- Function Available
- with synchronisation mode || software configurable
- Maximum Delay First Up
- 600 ms
- Enclosure Material
- PBT
- Front Material
- epoxy || rubber || resin
Repeat Accuracy0.1 %
Maximum Switching Current100 mA overload and short-circuit protection
Switching Frequency<= 2 Hz
Status Ledoutput state 1 LED green/yellow) || output state 1 LED multi-colour) || echo state 1 LED green)
Transmission Frequency75 kHz
Threaded Length43.2 mm
Blind Zone290-290 mm
Current Consumption50 mA
Thread TypeM30 x 1.5
Maximum Delay Recovery500 ms
Supply Voltage Limits10-30 V DC
Width43.2 mm
Depth116.3 mm
Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.290-8 m
- Wiring Technique
- 5-wire
- Series Name
- general purpose
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M30
- Analogue Output Function
- 4...20 mA
Discrete Output TypePNP
Type Of Output Signalanalogue + discrete
Sensor NameXXS
Materialplastic
Ip Degree Of ProtectionIP65 conforming to IEC 60529 || IP67
Detection Systemdiffuse
Electrical Connectionmale connector M12 5 pins
[Sn] Nominal Sensing Distance8-8 m adjustable with teach push-button || 8-8 m software with kit
