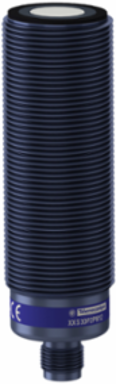

Telemecanique Sensors XXS30P2PM12 Ultrasonic sensor, plastic, cylindrical M30, straight, sensing range 2 m, output PNP

MPN: XXS30P2PM12
PPN: TES-XXS30P2PM12

$635.20

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Ultrasonic sensor, plastic, cylindrical M30, straight, sensing range 2 m, output PNP

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Function available	Software configurable with synchronisation mode
Minimum size of detected object	Cylinder diameter 1 mm at 1.4 m
Current consumption	65 mA
Setting-up	Configurator software teach mode
Delay response	90 ms

Voltage drop	2 V
Delay first up	150 ms
Status LED	Output state: 1 LED (yellow), echo state: 1 LED (green)
Switching frequency	5.5 Hz
Delay recovery	90 ms

Main

Range of product	Telemecanique Ultrasonic sensors XX
Series name	General purpose
Sensor design	Cylindrical M30
Material	Plastic
Discrete output function	1 NO or 1 NC programmable
Rated supply voltage (Us)	12...24 V DC with reverse polarity protection
Electrical connection	Male connector M12 5 pins
Front material	Epoxy resin rubber

Sensor type	Ultrasonic sensor
Sensor name	XXS
Detection system	Diffuse
Type of output signal	Discrete
Wiring technique	5-wire
Discrete output type	PNP
Enclosure material	PBT

Environment

IP degree of protection	IP65 conforming to IEC 60529, IP67
Standards	CSA C22.2 No 14 IEC 60947-5-2 UL 508
Vibration resistance	+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
