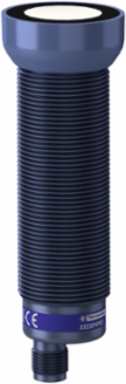

Telemecanique Sensors XXS30P4PM12 Ultrasonic sensors XX, ultrasonic sensor, plastic, cylindrical M30, straight, 4 m, PNP
Telemecanique Sensors XXS30P4PM12 Ultrasonic sensors XX, ultrasonic sensor, plastic, cylindrical M30, straight, 4 m, PNP
- MPN: XXS30P4PM12
- PPN: TES-XXS30P4PM12
- UNSPSC: 41111960
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$699.52/ EA
Description
This product is part of the XX range, an offer of ultrasonic sensors. This ultrasonic sensor in a cylindrical M30 design with diffuse detection system. It supports 4m nominal sensing distance and 1 NO or 1 NC programmable PNP discrete output. It is an ultrasonic sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, 10V to 30V DC and current consumption of 65mA. It is furnished with 5-pin M12 male connector for electrical connection. It is an IP65/IP67 rated product. The enclosure is made of PBT with epoxy, rubber and resin front. Its dimensions are 40mm (width) x 119mm (depth) x 30mm (height). It weighs 0.1kg. This product is certified by CE, CULus, EAC, E2, Ecolab and RCM. It meets CSA C22.2 No 14, EN/IEC 60947 5 2 and UL 508 standards. XX Ultrasonic Sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. The XX ultrasonic sensors perform contactless, reliable and high performance detection regardless of the target's shape, texture, color or transparency.
Specifications
Environment
- Product Certifications
- cULus || E2 || EAC || RCM || Ecolab
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1803029EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Repeat Accuracy
- 0.1 %
- Maximum Switching Current
- 100 mA overload and short-circuit protection
- Switching Frequency
- 2.7 Hz
- Maximum Voltage Drop
- 2 V
- Setting-Up
- teach mode || configurator software
- [Sa] Assured Operating Distance
- 0.420-4 m teach mode)
- Marking
- CE
- Net Weight
- 0.1 kg
- Deviation Angle From 90° Of Object To Be Detected
- -10-10 °
- Maximum Delay Recovery
- 180 ms
- Supply Voltage Limits
- 10-30 V DC
- Width
- 40 mm
- Depth
- 119 mm
Height30 mm
Minimum Size Of Detected Objectcylinder diameter 1 mm 1.8 m
Maximum Delay Response180 ms
Status Ledoutput state 1 LED yellow) || echo state 1 LED green)
Transmission Frequency80 kHz
Threaded Length74.7 mm
Blind Zone420-420 mm
Current Consumption65 mA
Function Availablewith synchronisation mode || software configurable
Maximum Delay First Up250 ms
Enclosure MaterialPBT
Front Materialepoxy || rubber || resin
Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.420-4 m
- Wiring Technique
- 5-wire
- Series Name
- general purpose
- Sensor Type
- ultrasonic sensor
- Sensor Design
- cylindrical M30
Discrete Output TypePNP
Type Of Output Signaldiscrete
Sensor NameXXS
Materialplastic
Ip Degree Of ProtectionIP65 conforming to IEC 60529 || IP67
Detection Systemdiffuse
Electrical Connectionmale connector M12 5 pins
[Sn] Nominal Sensing Distance4-4 m adjustable with remote teach push-button || 4-4 m software with kit
